Cantilever Beam with 2D Shell Elements

Modified on Thu, 14 Dec, 2023 at 9:14 AM

What is in this Article?

Terminologies

Collection	The folder containing data of an asset/model on Akselos Cloud or users’ computer
Components	Components created by the componentization process to use with Akselos Integra
Port	A mesh node or surface is used to connect two components together
Nodeset	A mesh node assigned with a certain ID number
Model ribbon	An Akselos Modeler ribbon containing tools for model assembling and management
Ribbons	The top-sided toolbars of Akselos Modeler
Property Tree	A panel at the left bottom of Akselos Modeler, where shows properties of user selection

1. Introduction

Shell elements are used to efficiently and economically model structures where one dimension is much smaller than the other dimensions (e.g. the thickness is much smaller than the length of the component). They are widely used in the analysis of piping systems, curved panels, pressure vessels, ships, and others.

In this tutorial, we will again simulate the cantilever beam model similar to Article - Cantilever Beam with 1D Beam Elements but with shell elements. This tutorial will guide you on how to create a cantilever beam model using beam shell components in your collection. Therefore, it is recommended that you practice the 1D Cantilever Beam Article to get familiar with the simulation process (especially applying loads and boundary conditions) before doing this tutorial.

Figure 1.1. 2D cantilever beam problem workflow

Journey 1: We have prepared the ShellTutorial collection as a sample collection which has the RB-FEA components and a complete model. In our sample collection, you are only granted it with the Read access permission, which means you just can import them to your local machine and cannot submit any changes that affect the data on the Akselos Dashboard (Read Article - Who can access your Organization data? - to know more about access type). However, you can submit the solving request for our complete model to the Cloud. The components in this collection are already trained, hence you can solve them with either RB-FEA or FEA Solver Strategy. Once you have solved the problem and received the solution, you can check the solution configurations and compare them to the theoretical results.

Journey 2: In this journey, users will be guided to solve the beam problem with the shell element from scratch. Require that users have an organization to be able to create a collection and train the RB-FEA components.

We will go through this article as Journey 2 with the sample collection - ShellTutorial.

2. Problem Description

In this tutorial, we use five T-beam Shell components to create the beam model (length = 5*0.75m = 3.75m). The model is fixed on one side and free on the other, under a uniformly distributed load W = 1 kPa. The model schematic and beam cross-section are shown in the figure below.

A diagram of a number of letters

Description automatically generated

Figure 2.1. Cantilever beam with a uniformly distributed load

The T-beam Shell component has the cross-section geometry and properties as below:

Total length (L) of 0.75 (m)
T-beam cross-section (m): TFw=0.06; TFt=0.01; Wh=0.125; Wt=0.01
Young’s modulus (E) of material is 200e9 (Pa), Poisson (ν) is 0.3
Mass density: 7850 kg/m³

A diagram of a rectangular object with measurements

Description automatically generated

Figure 2.2. The beam Cross-section

3. Before We Start

Akselos Modeler - Our simulation is required to build and run solving for this problem.

To follow the instructions below, please notice the point below:

Journey 1: A sample collection has been prepared for you to use as a reference. Find the ShellTutorial here on Akselos Dashboard and import it to your local machine. You just need to import this collection and move to Step 9 in the Implementation section.
Journey 2:
- A new collection in your Organization is required to store the model and train the RB-FEA components on Akselos Dashboard (https://dashboard.akselos.com). Read more Start building your asset with a new collection to know how to create the collection.
- The mesh file has been prepared. It is used to import to Akselos Modeler to build the model. Find and download to your local computer - T-beam-0.75 here on Akselos Dashboard.

Note:
▶ If you have not installed Akselos Modeler yet, please see Akselos Modeler 2023 - Installing, Updating and Managing the Akselos Simulation Software to download and install the software.
▶ If you have trouble accessing to any of those pre-requisites. Please contact us at: support.akselos.com

As a reference, follow the steps below to create and import the ShellTutorial collection into Akselos Modeler:

Create Collection:

In your Organization on Akselos Dashboard, click on New Collection → Enter the name of the collection and select elasticity physics type → Click on the Create button.

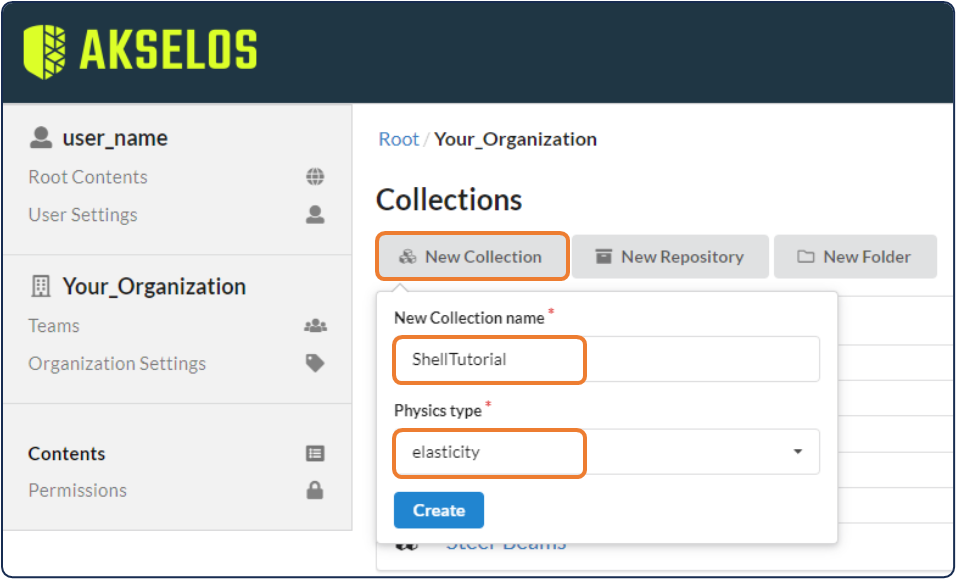

Figure 3.1. Creating collection on Akselos Dashboard

Import Collection:

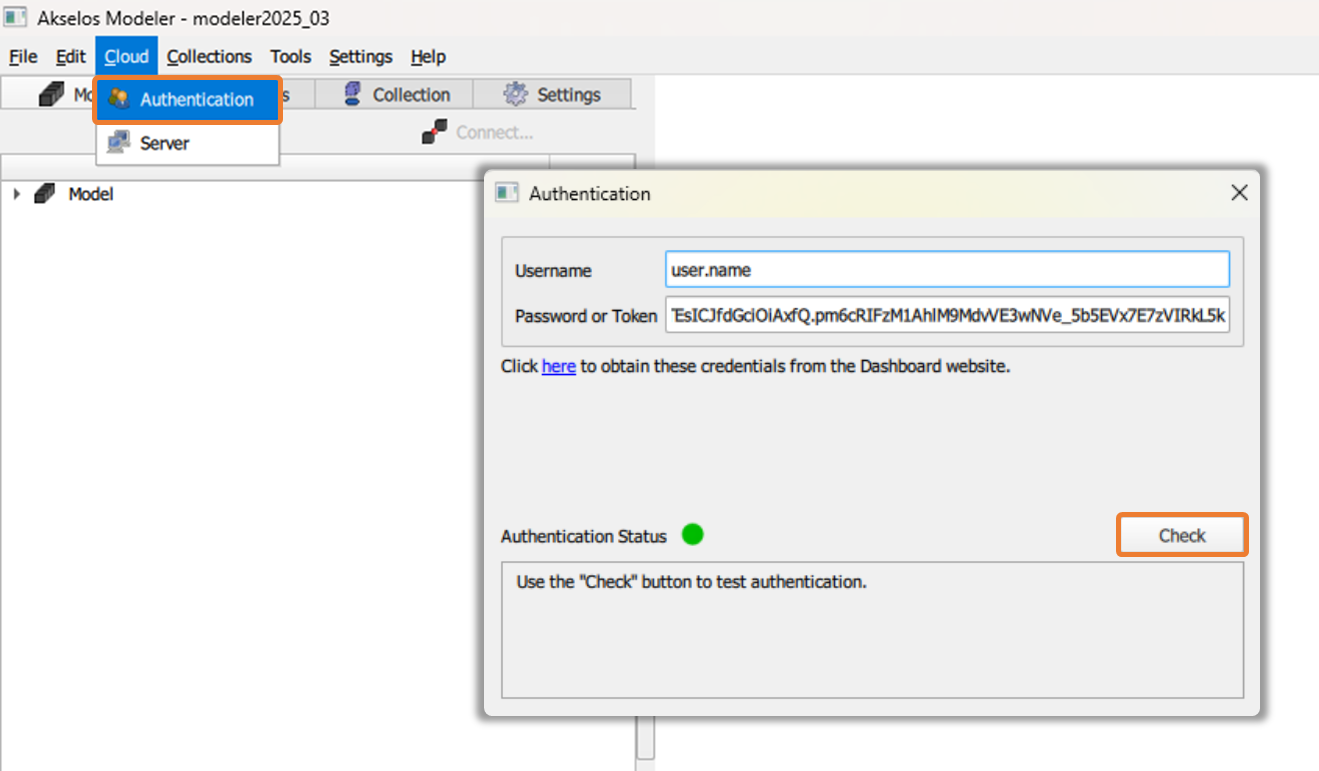

In Akselos Modeler, click on the Cloud tab on Ribbons → Authentication → Enter your username and (password or token) → Click on the Check button and wait for Authentication status to turn green and show Authentication successful.

Figure 3.2. Checking authentication

On the Collections tab, click on Import Collection… → On the Import Collection window, find and select ShellTutorial collection → Double-click on it or click on the Import button to pull the collection into your computer. You will receive a success message when the collection is successfully imported.

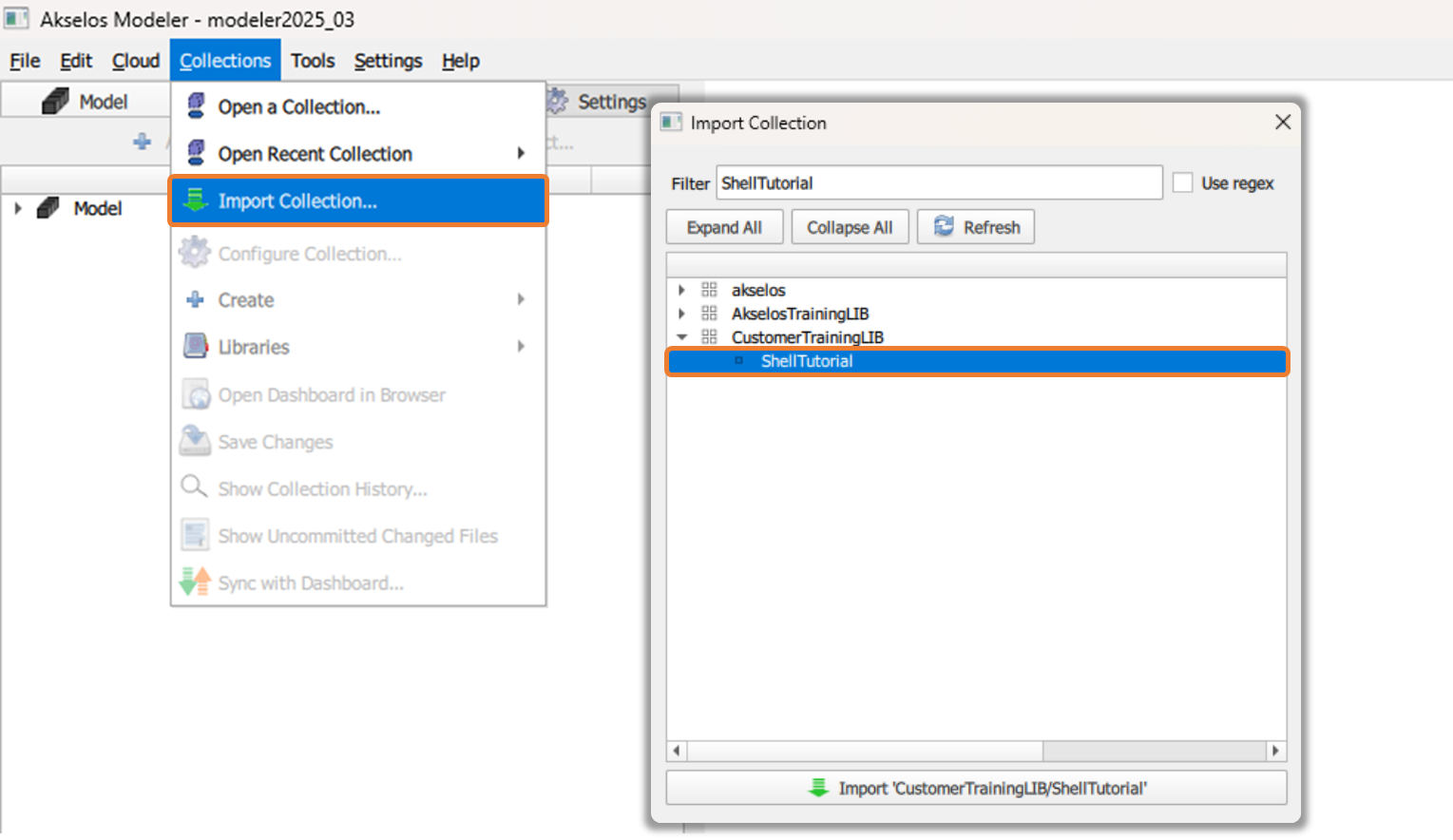

Figure 3.3. Importing ShellTutorial collection into the local machine

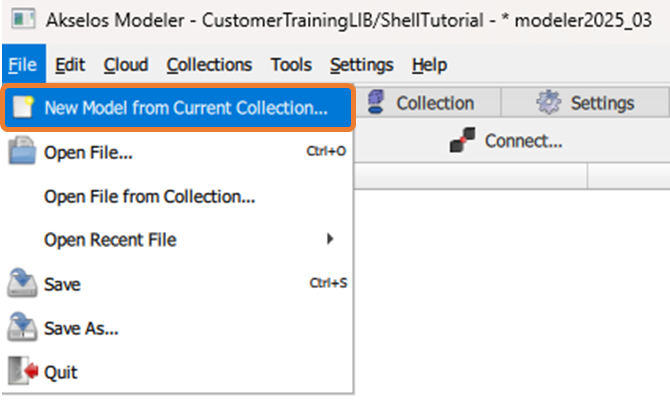

On the File tab, click on New Model → From Current Collection. The collection is ready to use after this step.

Figure 3.4. Opening the ShellTutorial collection

4. Implementation

In the Implementation section, we will show you a step-by-step in detail guide on how to analyze the beam problem with the 2D shell elements in Akselos Modeler (Follow Journey 2).

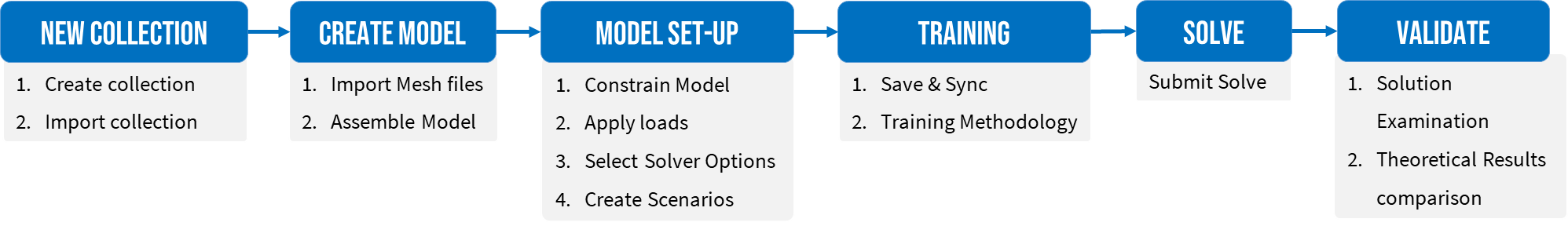

Figure 4.1. 2D cantilever beam problem workflow (Journey 2)

STEP 1: Import Mesh Files

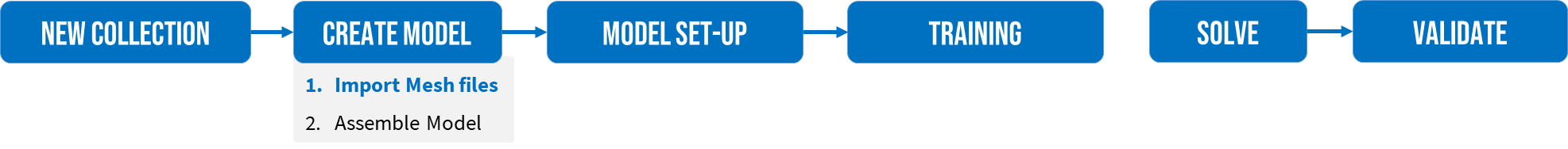

Figure 4.2. Create Model - Import Mesh files

Follow the steps below to import the component from the mesh file into Akselos Modeler:

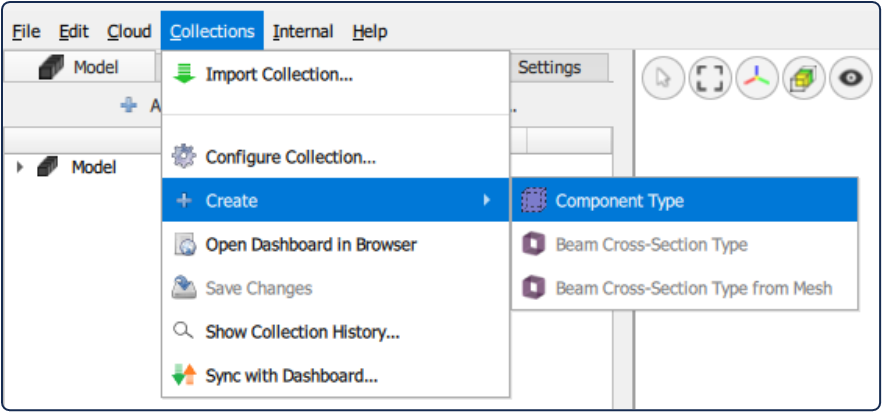

Click on the Collections ribbon → Create → Component Type.

Figure 4.3. Opening Component Type

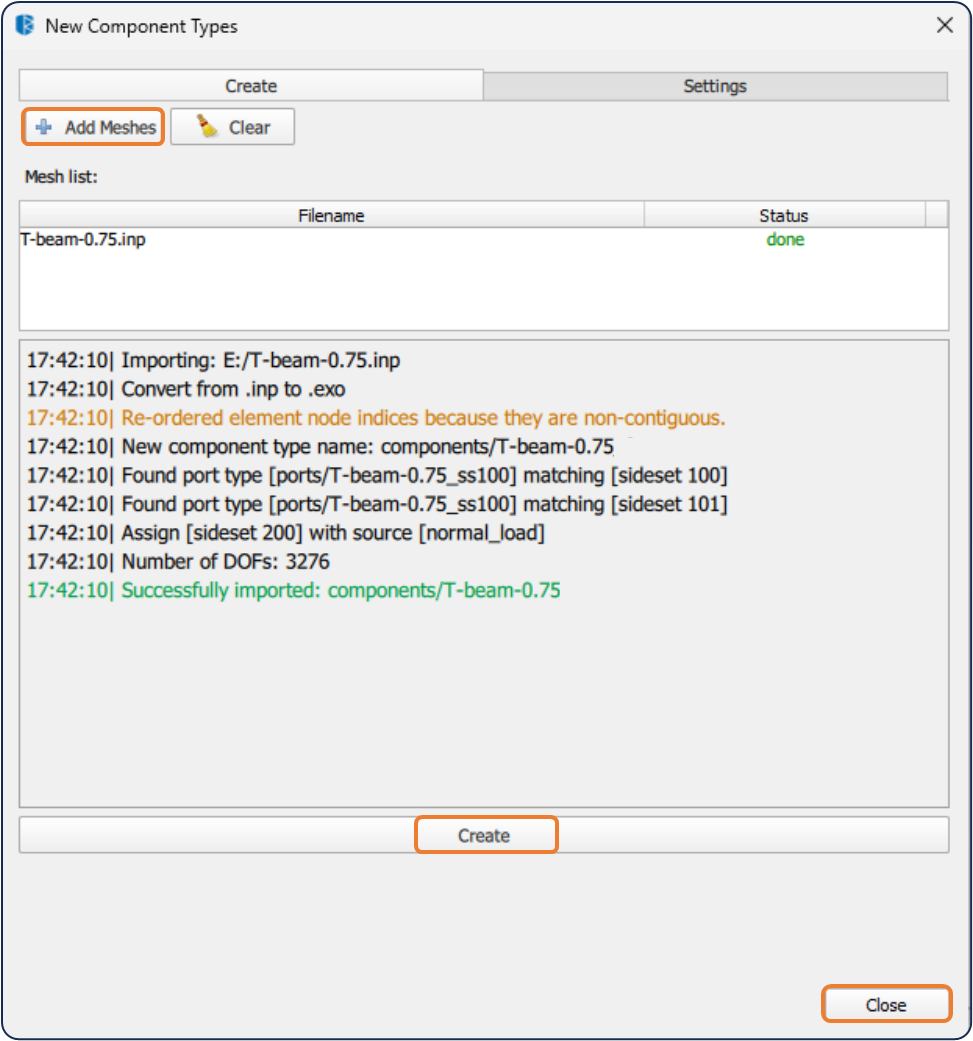

In the tool window, click on the Add Meshes button → Find the T-beam-0.75.inp file that you have downloaded from Akselos Dashboard → Click on the Create button (You will receive a success message when the mesh file is successfully imported) → Click on the Close button to exit the tool window.

Figure 4.4. Adding mesh file and creating component

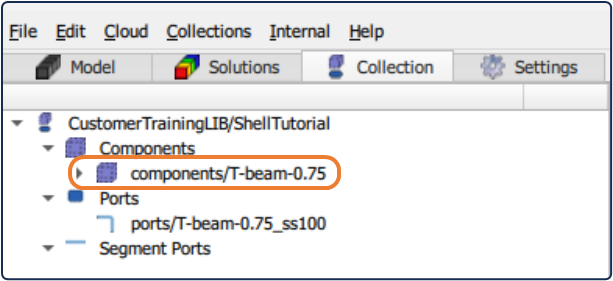

Change to the Collection ribbon to check that the mesh file has been imported as a component.

Figure 4.5. Checking component

The recently imported component is the data of collection, now we have to import this component to the environment working space

Change to the Model ribbon → Click on the Add button →Component(s)→ In the tool window, select the T-beam-0.75 component → Click on the Add button. Once added successfully, the component will be shown on the Graphic Window with the random position.

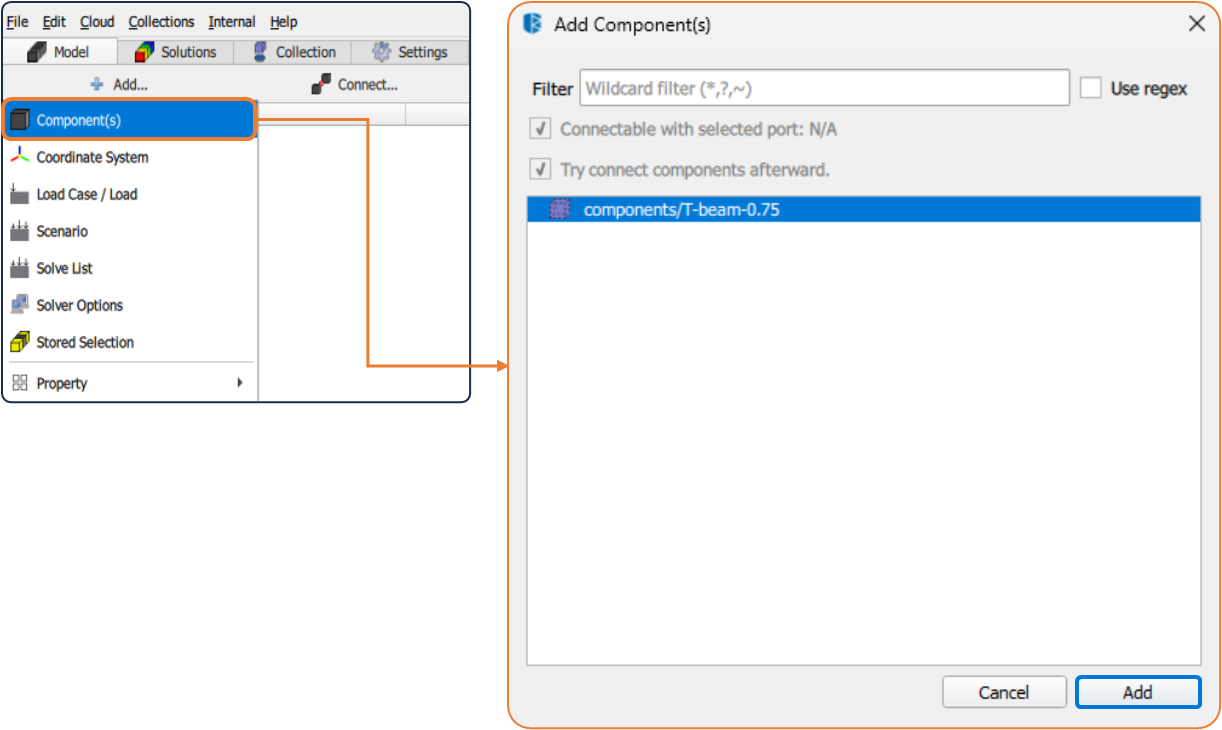

Figure 4.6. Adding the T-beam-0.75 component to the Graphic Window

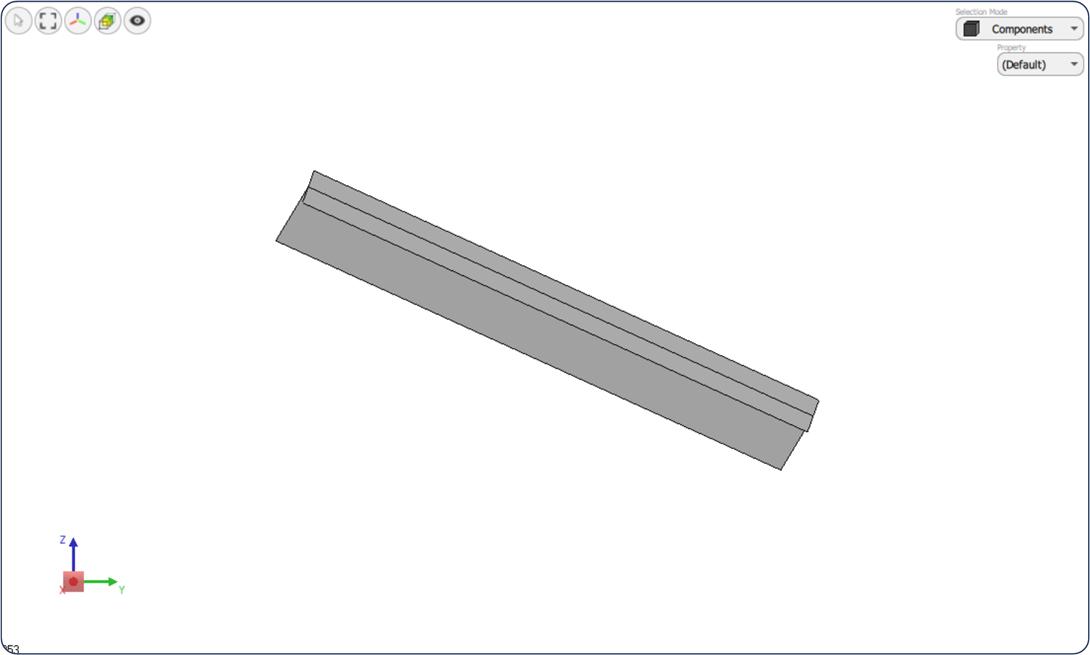

Figure 4.7. T-beam-0.75 component on the Graphic Window after adding successfully

STEP 2: Assemble Model

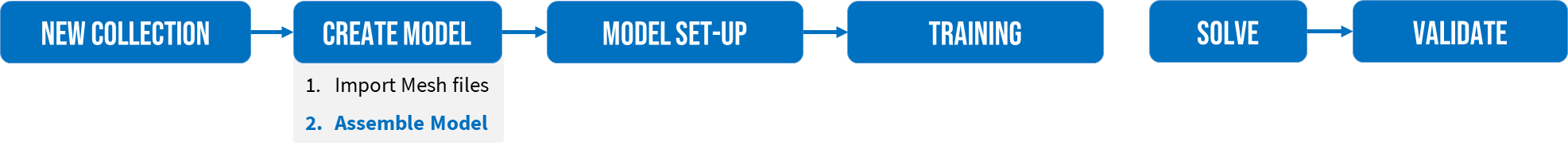

Figure 4.8. Create Model - Assemble Model

Follow the steps below to import the component from the mesh file into Akselos Modeler:

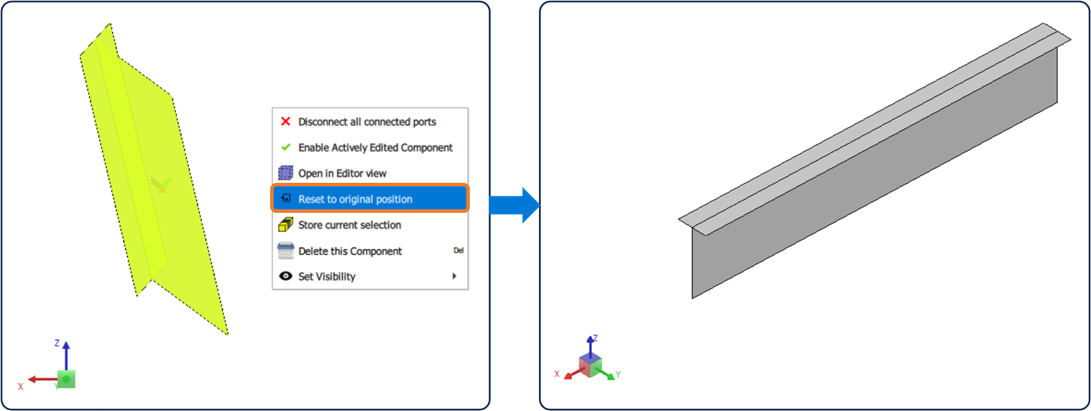

Before assembling, we should reset the component to its original position. To do that: Select the component on the Graphic Window → Right-click on the Graphic Window → Reset to original position.

Figure 4.9. Resetting the component to the original position

Clone the T-Beam-0.75 component five times and connect them together to make a full beam with a total length of 3.75 (m).

Model Moving - Move/Connect tool article is useful for you to know and implement in this step.

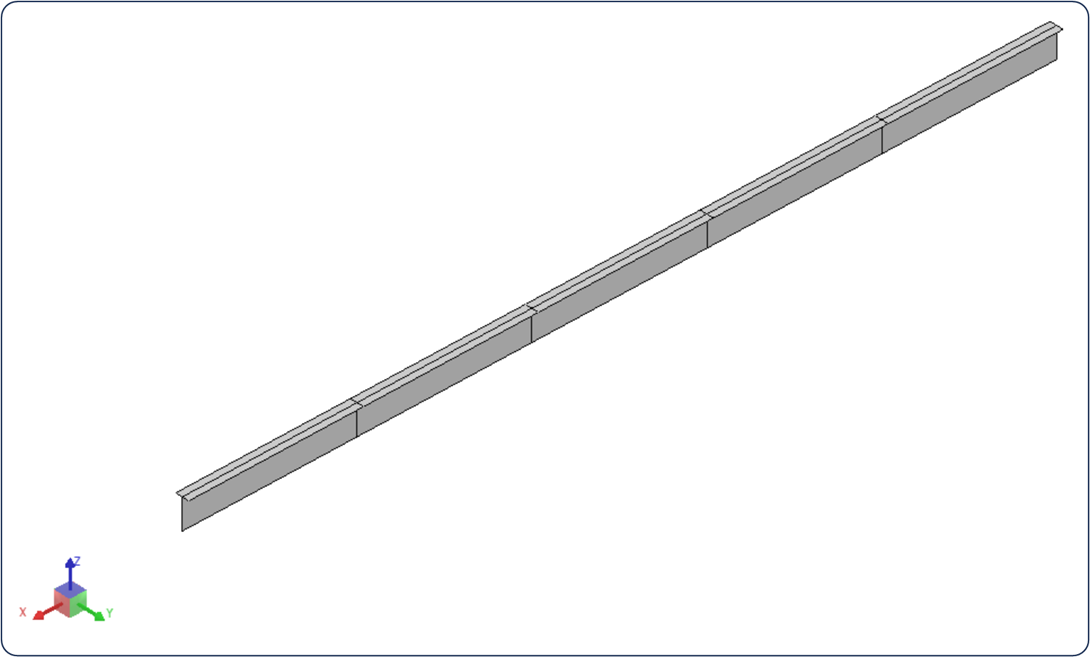

Figure 4.10. Cloning and connecting five components together

STEP 3: Constrain Model

Figure 4.11. Model Set-Up - Constrain Model

After assembling the model, we can start applying boundary conditions at one end of the model.

A related article that is useful for you to know and implement in this section: Boundary Conditions.

To constrain one beam end, follow the steps below:

Turn on Unconnected Ports and Boundary Conditions in the Configure View Settings to show the port at the beam end.

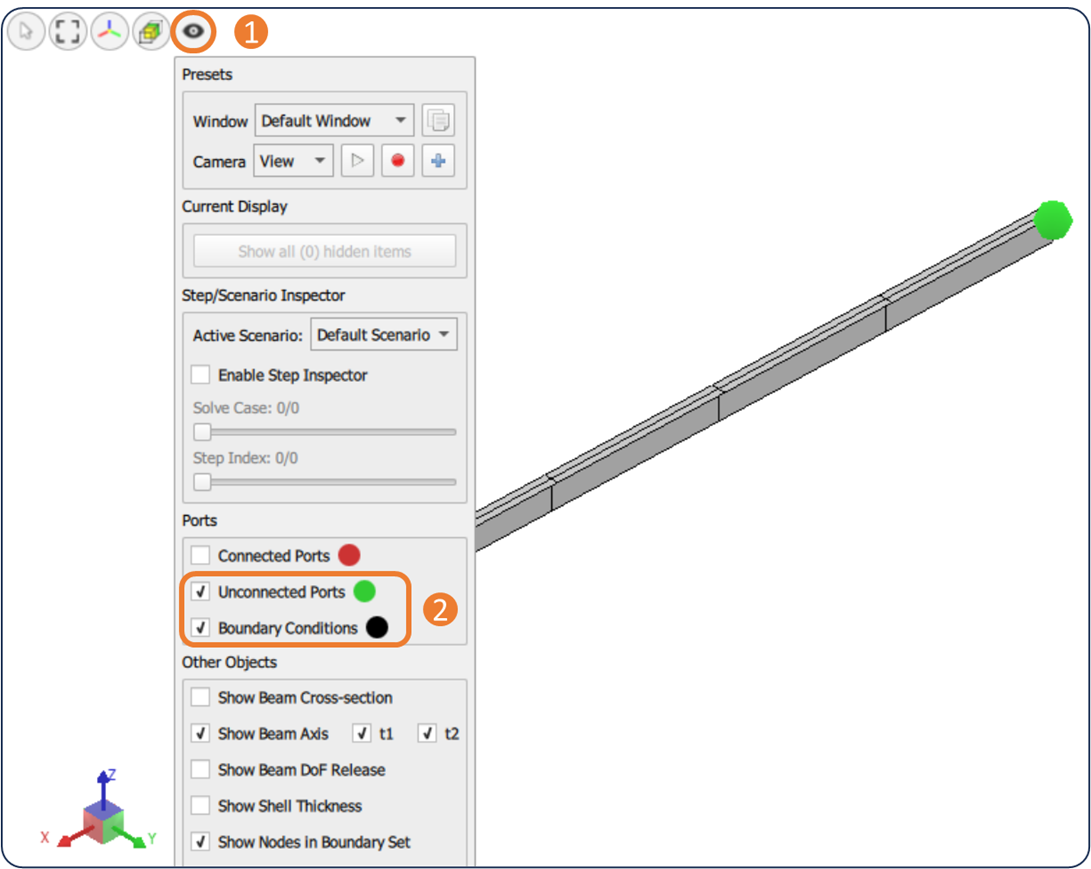

Figure 4.12. Turning on Unconnected Ports and Boundary Conditions

Select the port at the beam end → Select the option in the Property Tree as in the figure below.

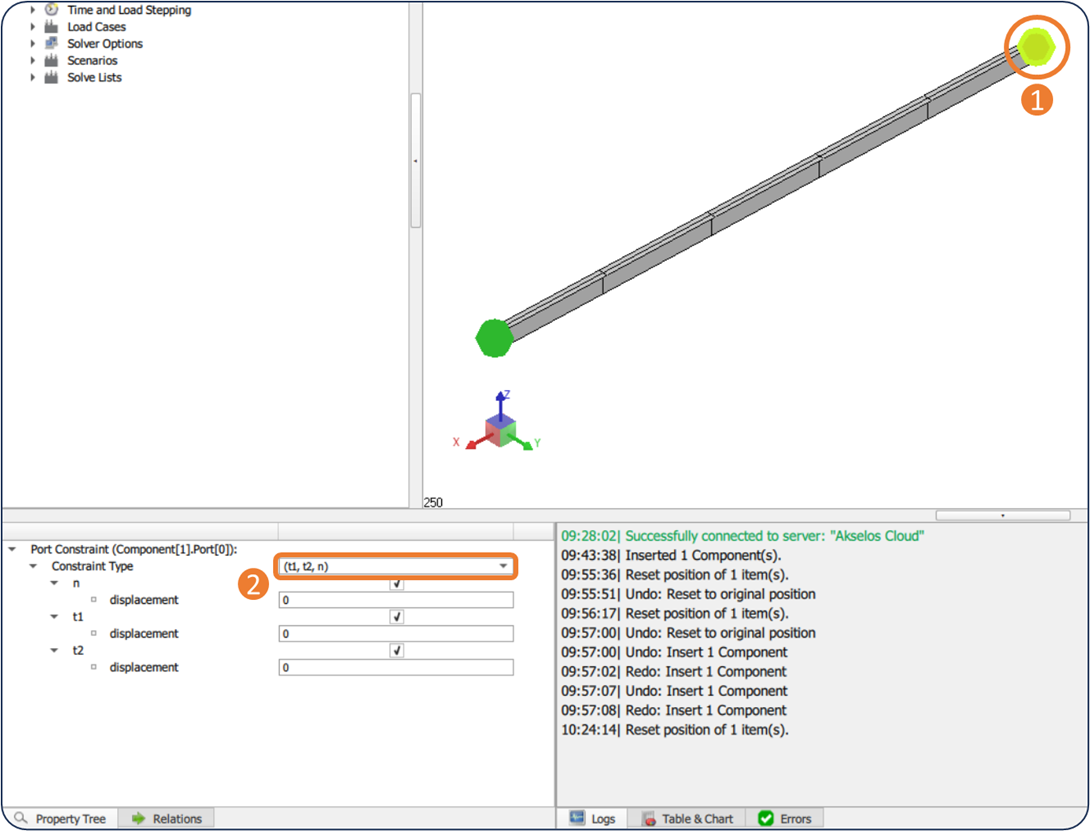

Figure 4.13. Constraining the port

A long rectangular object with a white background

Description automatically generated

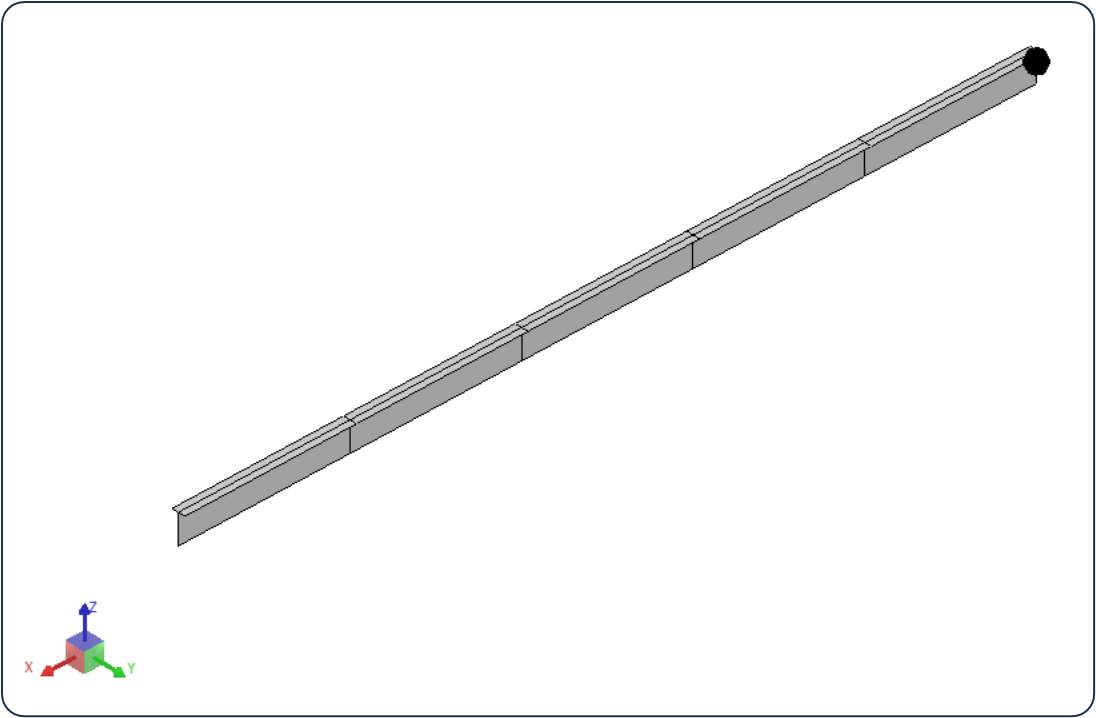

Figure 4.14. The model with a constrained port

STEP 4: Apply Loads

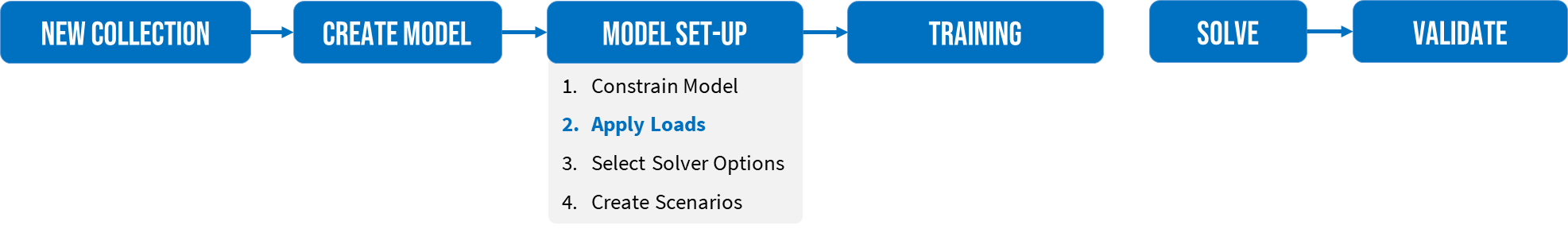

Figure 4.15. Model Set-Up - Apply Loads

Before applying the normal load on the top surface of the beam, we need to store the boundary set. Follow the steps below to do it:

Add new Boundary Sets Selection.
Click on the recently created Boundary Sets Selection → Select all top surfaces of the beam to store them. The selected one will be highlighted on the Graphic Window.

A screenshot of a video game

Description automatically generated

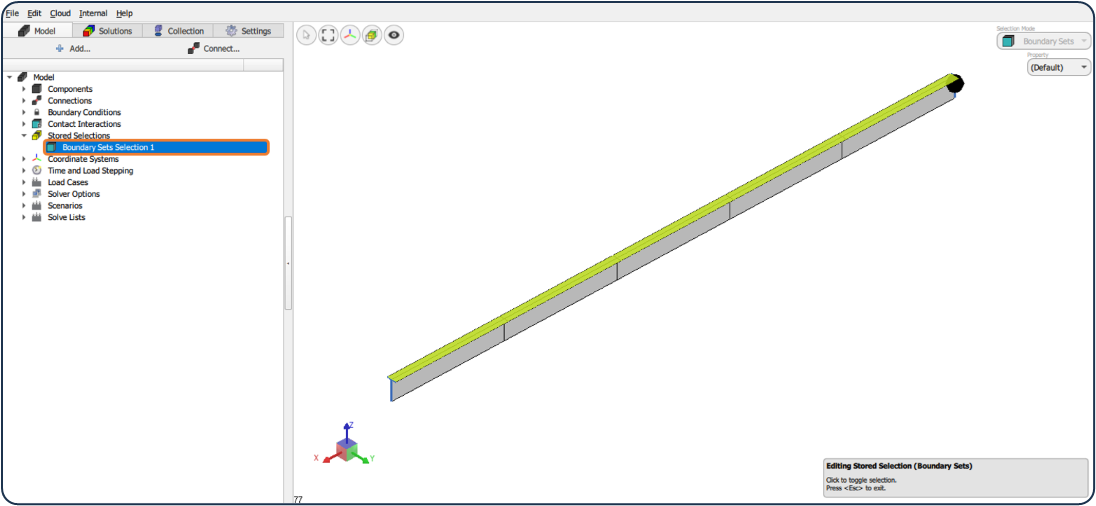

Figure 4.16. Storing boundary sets

Once we have the stored selection to apply the normal load on, we will create the normal load following the steps below:

Create load under Load Cases.

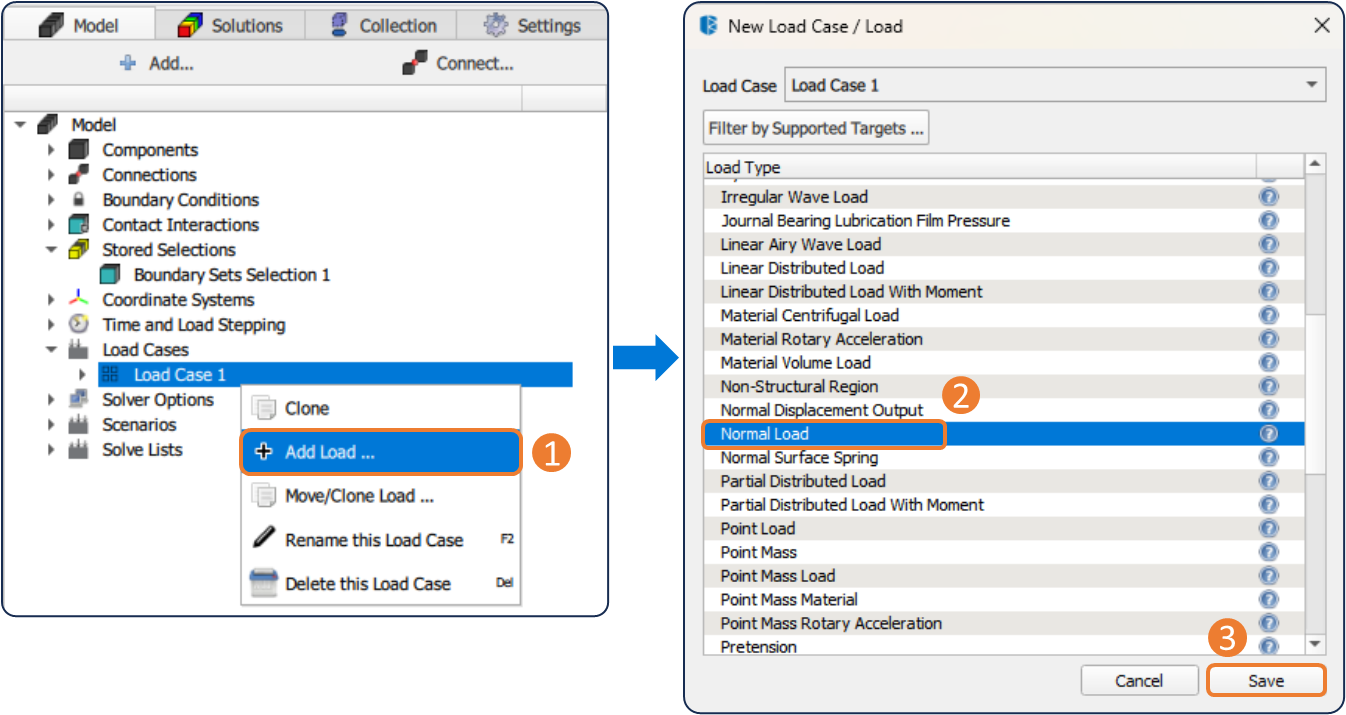

Create load in the newly created load case → Select Normal Load.
Set up load as in the figure below.

Figure 4.17. Creating the Normal Load

A screenshot of a computer

Description automatically generated

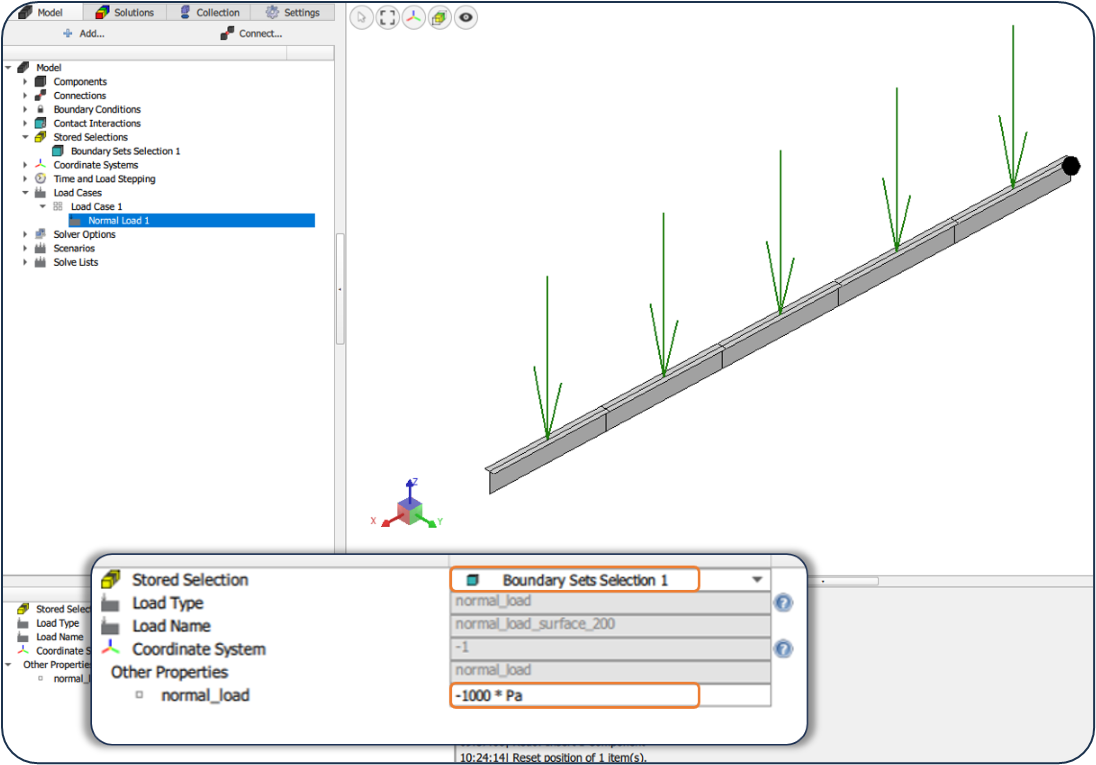

Figure 4.18. Setting the Normal Load

STEP 5: Select Solver Options

Figure 4.19. Model Set-Up - Select Solver Options

To be able to proceed to solve the model, we have to set solver options on the Property Tree. With all above settings, we can solve the model with a few steps but according to the FEA method. However, the solving process may take a lot of time with this traditional method. Therefore, we will simulate the model with the RB-FEA strategy.

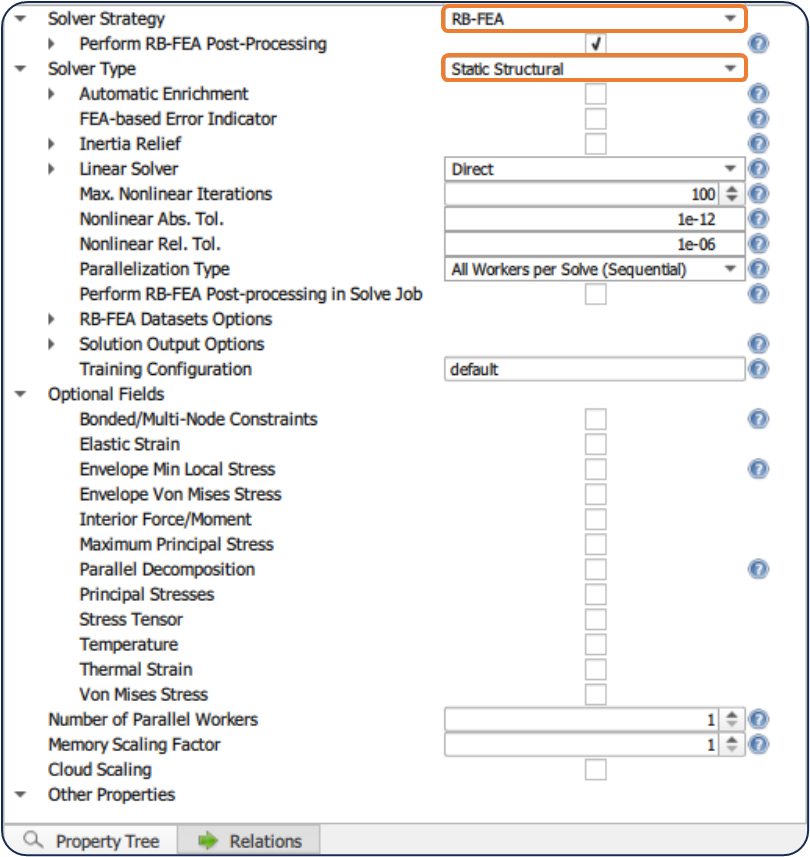

Choose RB-FEA for the Solver Strategy and Static Structural for the Solver Type.

Figure 4.20. Setting Solver Option

STEP 6: Create Scenarios

Figure 4.21. Model Set-Up - Create Scenarios

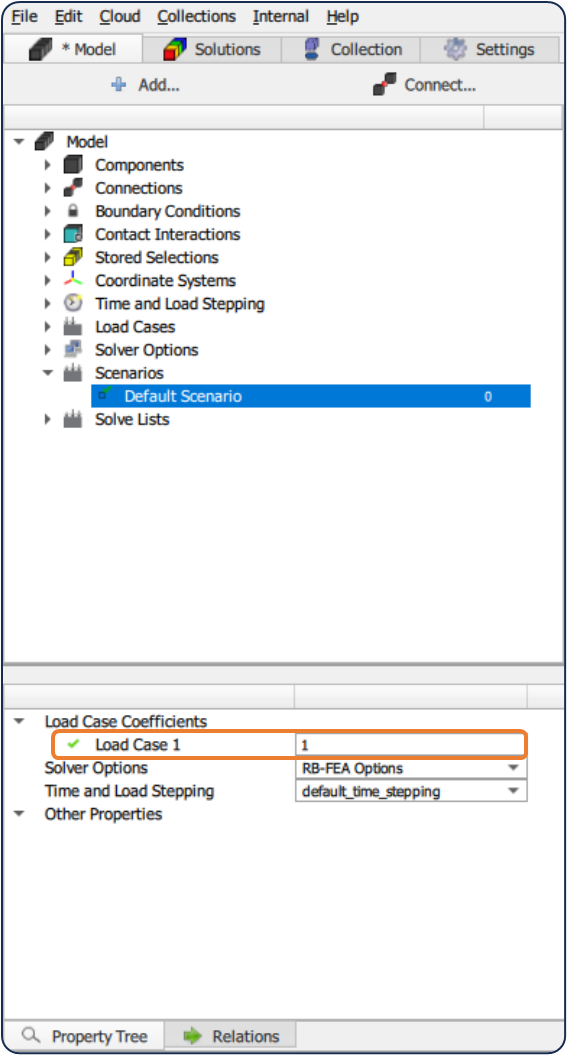

Set Scenario: Under Scenario on the left panel, there is Default Scenario and we use it. Click on Default Scenario → See the Property Tree and set the coefficient of Load Case 1 to 1.0.

Figure 4.22. Setting Scenario

Set Solve List: Since there is only one scenario, select the default in Solve List to check that the default scenario is turned on.

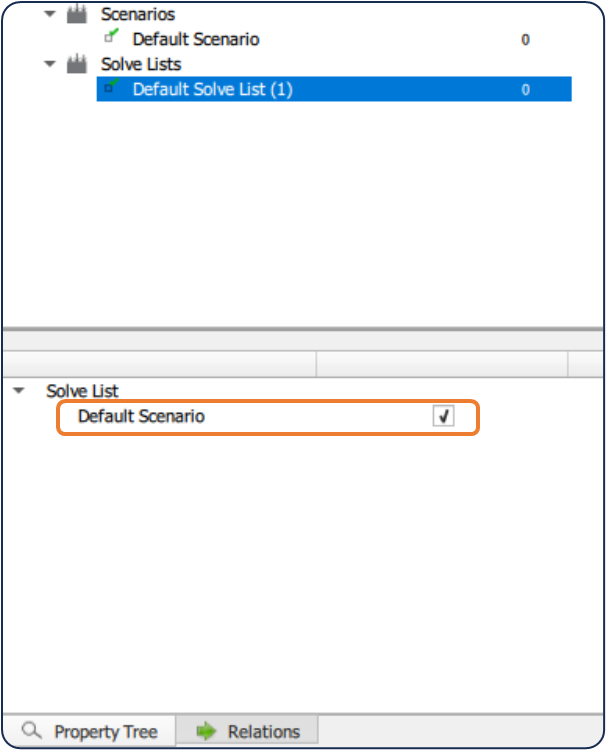

Figure 4.23. Setting Solve list

STEP 7: Save & Sync

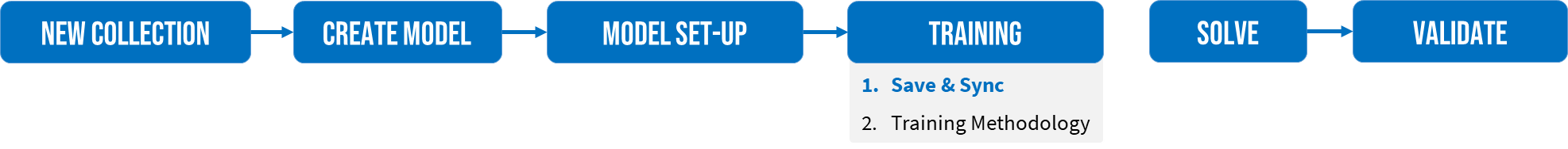

Figure 4.24. Training - Save & Sync

Before training the RB-FEA components, we have to save the aks file to save all settings of the model and sync this collection to Akselos Dashboard.

Save aks File:

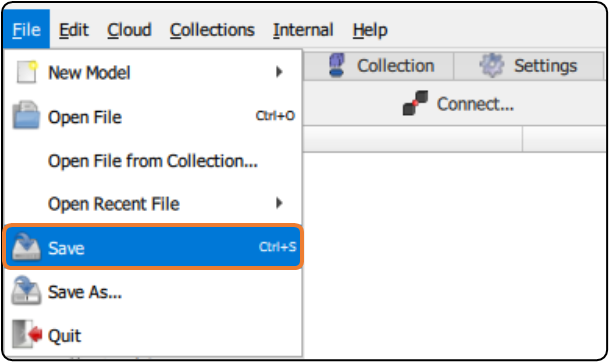

- Click on the File tab → Save.

Figure 4.25. Saving aks file

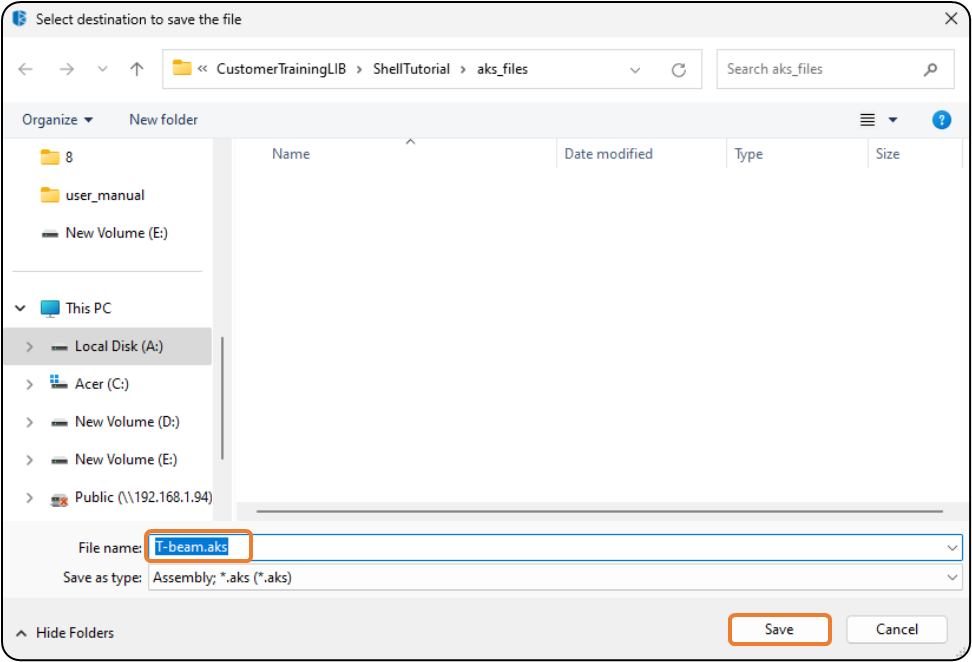

The Select destination to save the file window appears, enter the name into the File name box then click the Save button. You will receive a success message when the file is successfully saved.

Figure 4.26. Naming and saving aks file

Sync Collection:

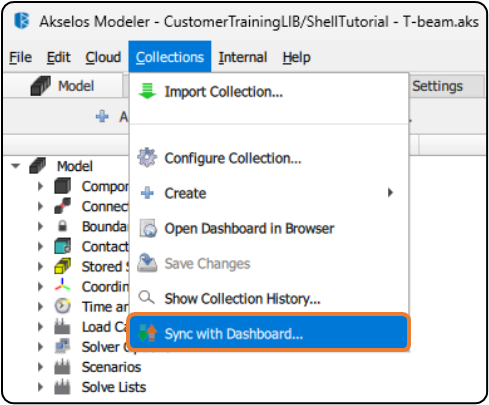

- Click on the Collections tab →Sync with Dashboard.

Figure 4.27. Syncing collection

Click the Commit button when this window appears.

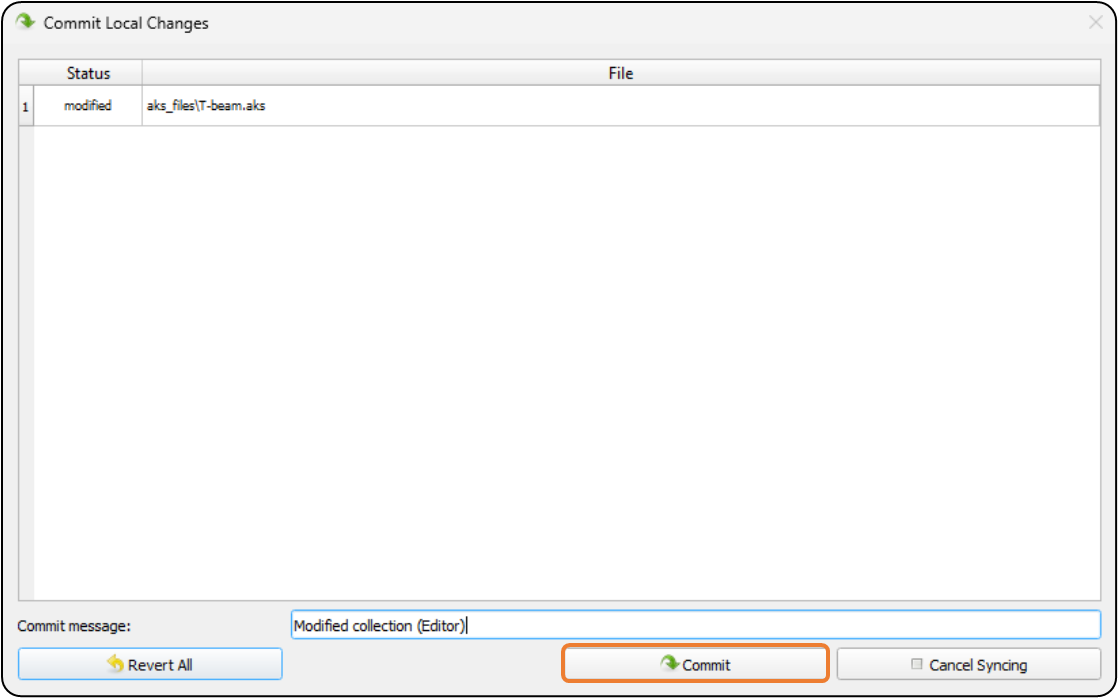

Figure 4.28. Committing for synchronization

STEP 8: Training Methodology

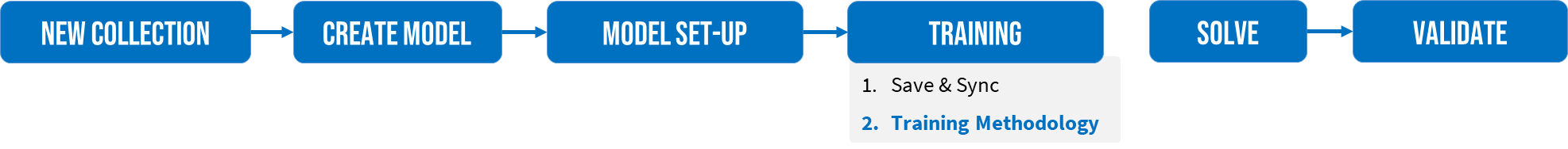

Figure 4.29. Training - Training Methodology

Component Training (or Component Pre-computing/Component Pre-analysis) is a crucial step of Akselos’ workflow. It uses Akselos smart algorithm to generate training datasets that cover many possibilities of models based on their parameters' settings. The training dataset, which is the output of this training process, is used to perform RB-FEA analysis.

Open Dashboard: Akselos Dashboard supports users to perform the Component Training process which is required before doing any RB-FEA solves.

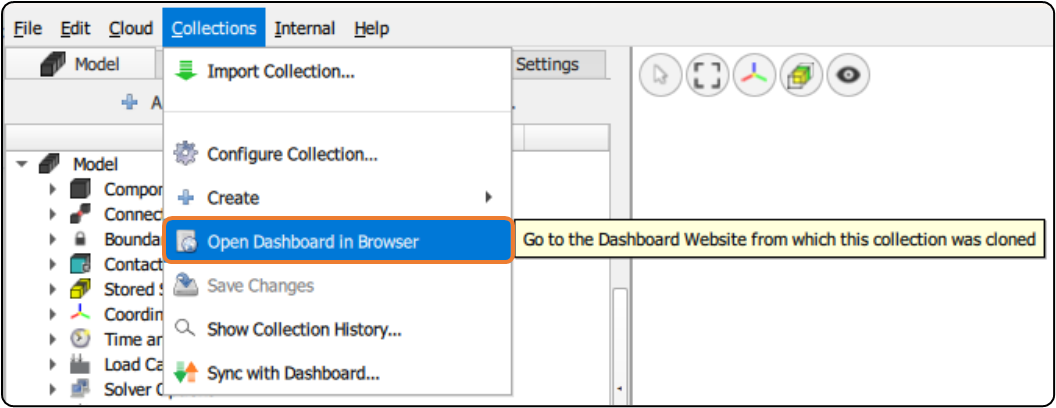

Click on the Collections tab → Open Dashboard in Browser.

Figure 4.30. Opening Akselos Dashboard from Akselos Modeler

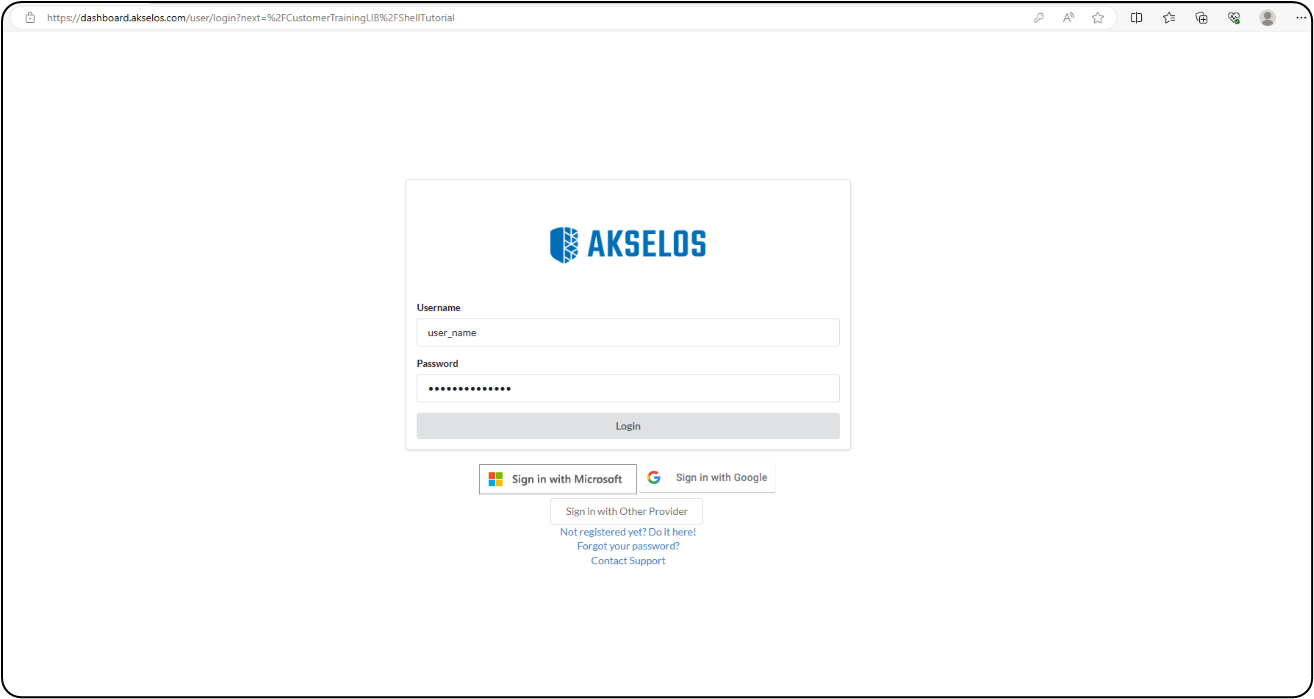

Enter your username and password to log in.

Figure 4.31. Logging in to Akselos Dashboard

Training (Pre-computing): Read Exploring Component Pre-computing setting options to know more about the options in this section.

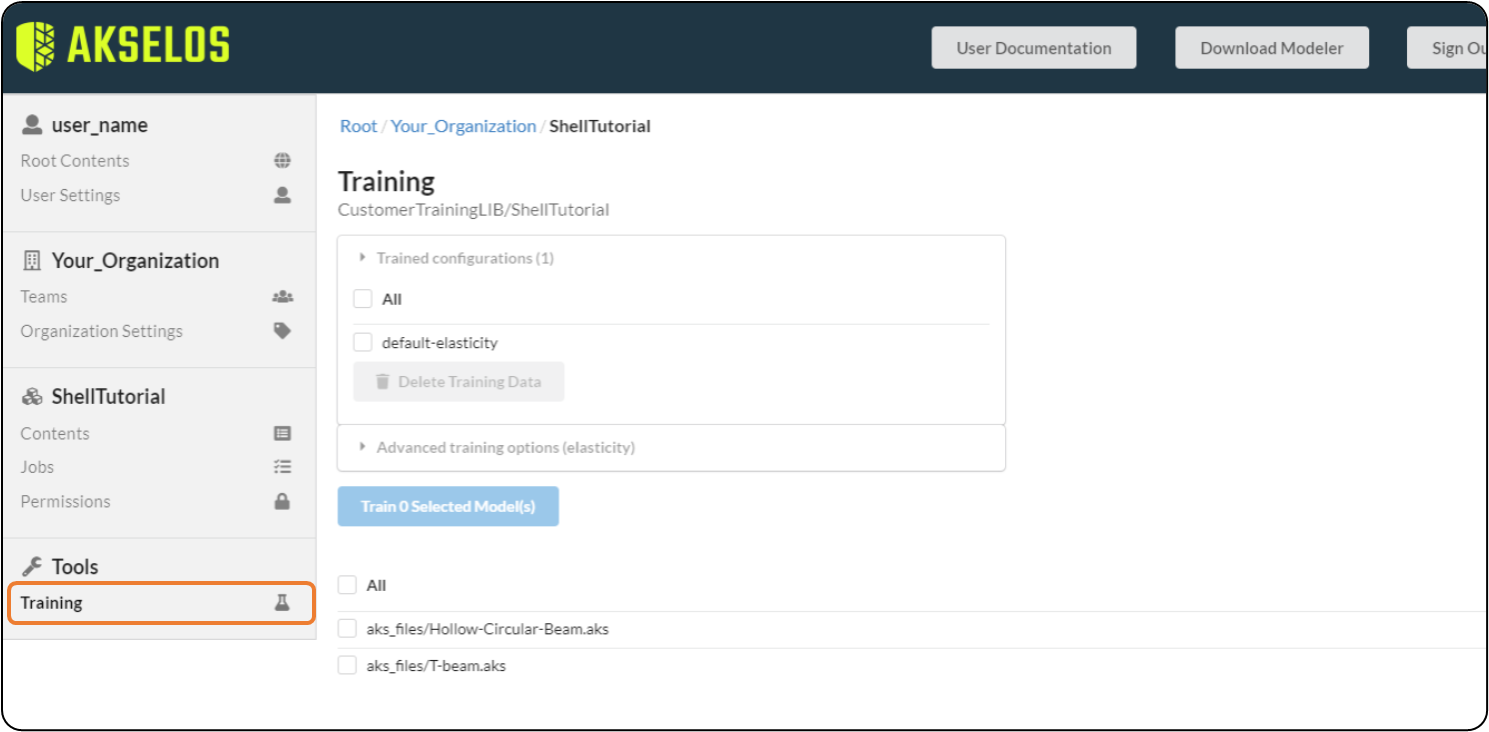

Click on the Training button on the left panel to open the Training tab.

Figure 4.32. Opening the Training tab

Expand Advanced training options (elasticity) → Select these options as in the figure below → Tick on the model (T-beam.aks) → Click on the Train 1 Selected Model(s) button.

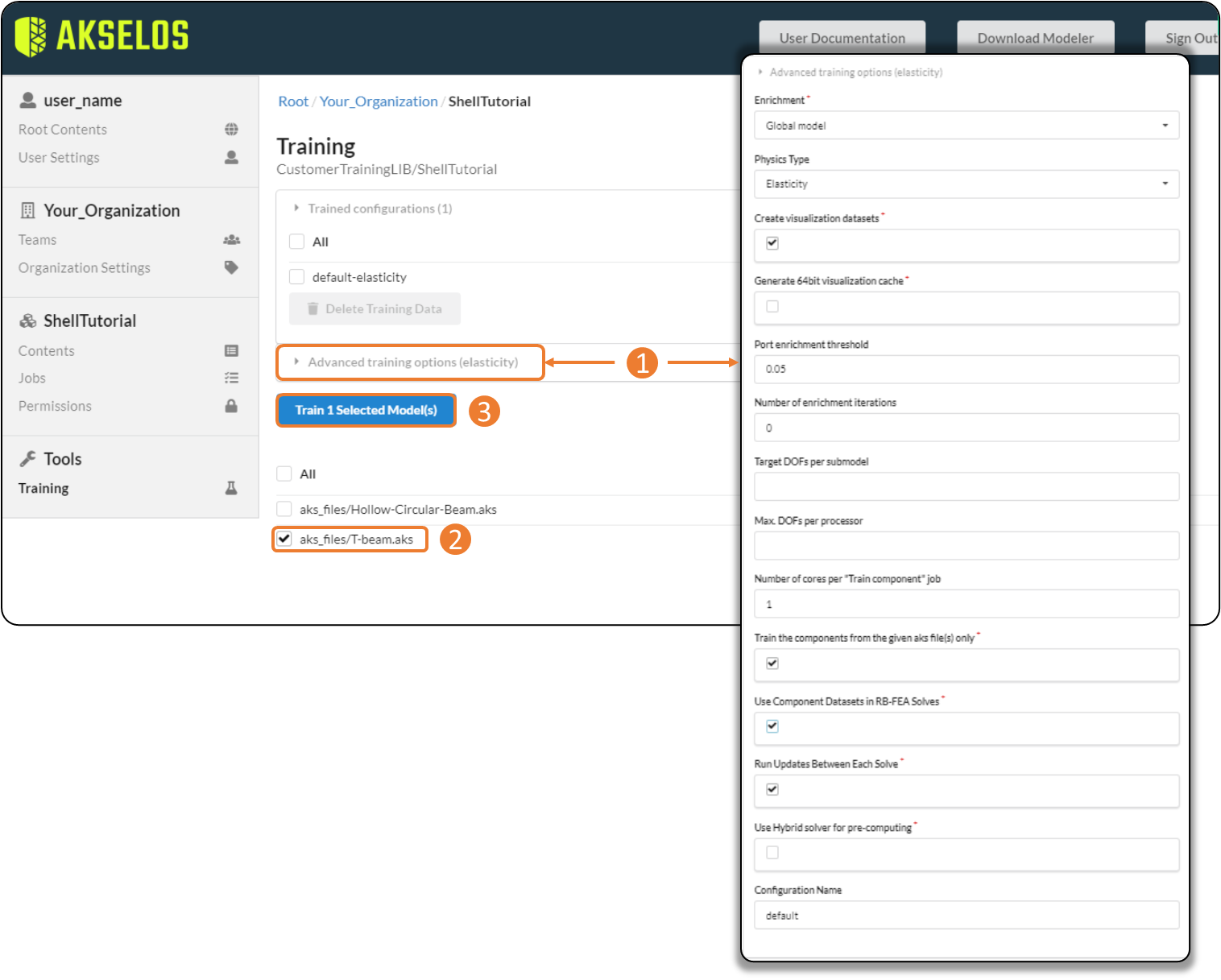

Figure 4.33. Setting for training

In Advanced training options (elasticity), we choose:

Enrichment - Global Model: Because this model is small (less than 5 million FEA degrees of freedom).
Physics Type - Elasticity: Because the model is solved with a Static Structure solver type.
Create visualization datasets: turning on this option will create datasets that can make visualization run faster by storing extra visualization data on disk.
Number of cores per "Train component" job - 1: Because this model is small. 1 core is recommended.
Train the components from the given aks file(s) only: If you have more components in your collection, turn on this option to only train the component(s) which is included in your aks file(s).
Leave the default for other options.

After submitting the training request, open the Job tab to check the job. Once the status is Success, users can move to the next step to solve the model.

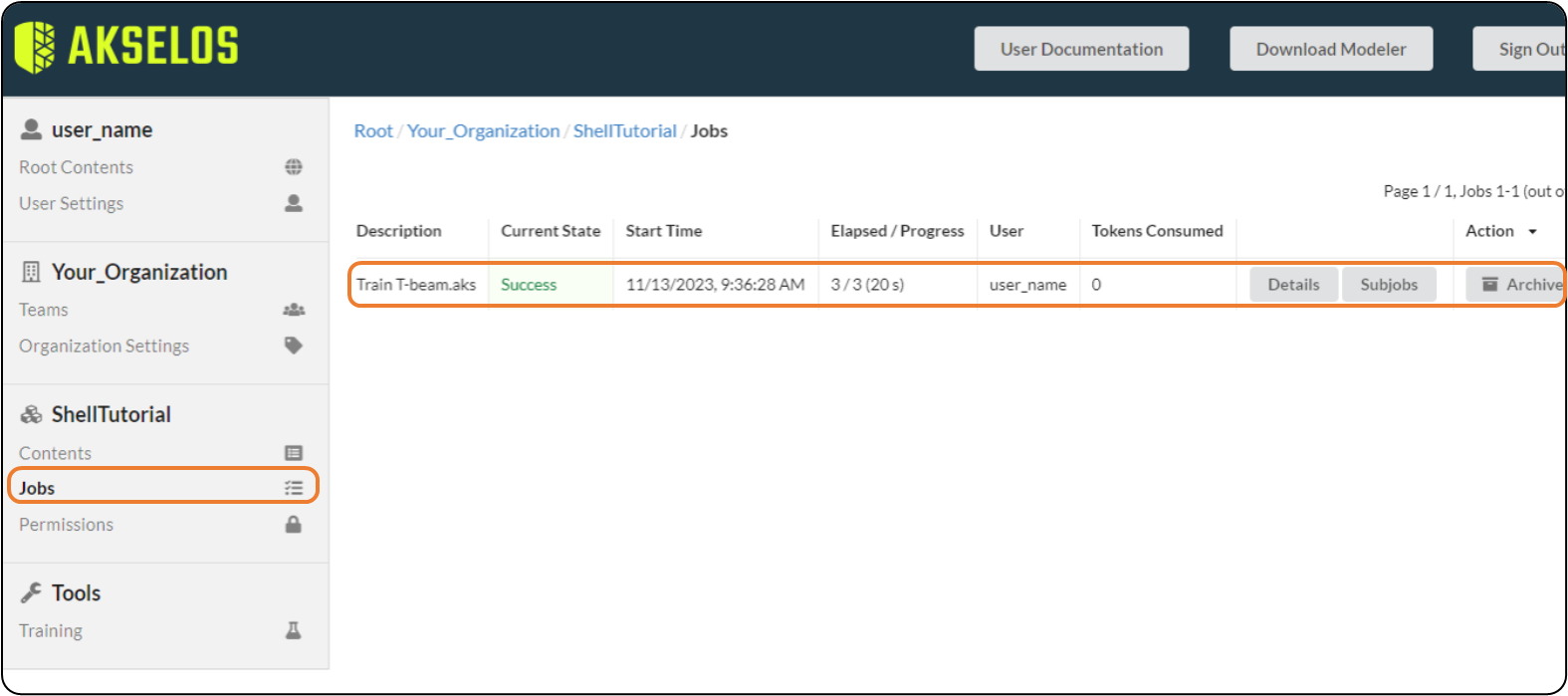

Figure 4.34. Tracking the training job

STEP 9: Solve

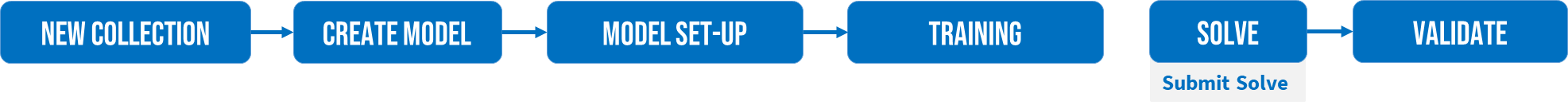

Figure 4.35. Solve - Submit Solve

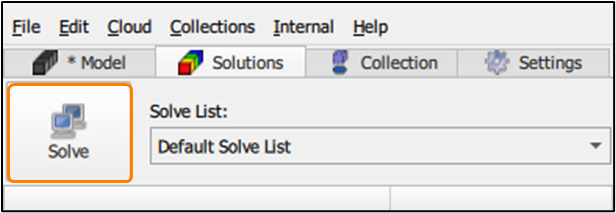

Run Solving: Change to the Solutions ribbon → Click on the Solve button. The solving request will be submitted to Akselos Cloud. You will see the status of this request on the Solution tree. You can see the results once the solving is done, which is usually within seconds with Akselos solver.

Figure 4.36. Solving model

Users also can track the job on Dashboard. Once the status is Success, the visualization datasets will be downloaded to Akselos Modeler, it takes a few seconds according to the model size.

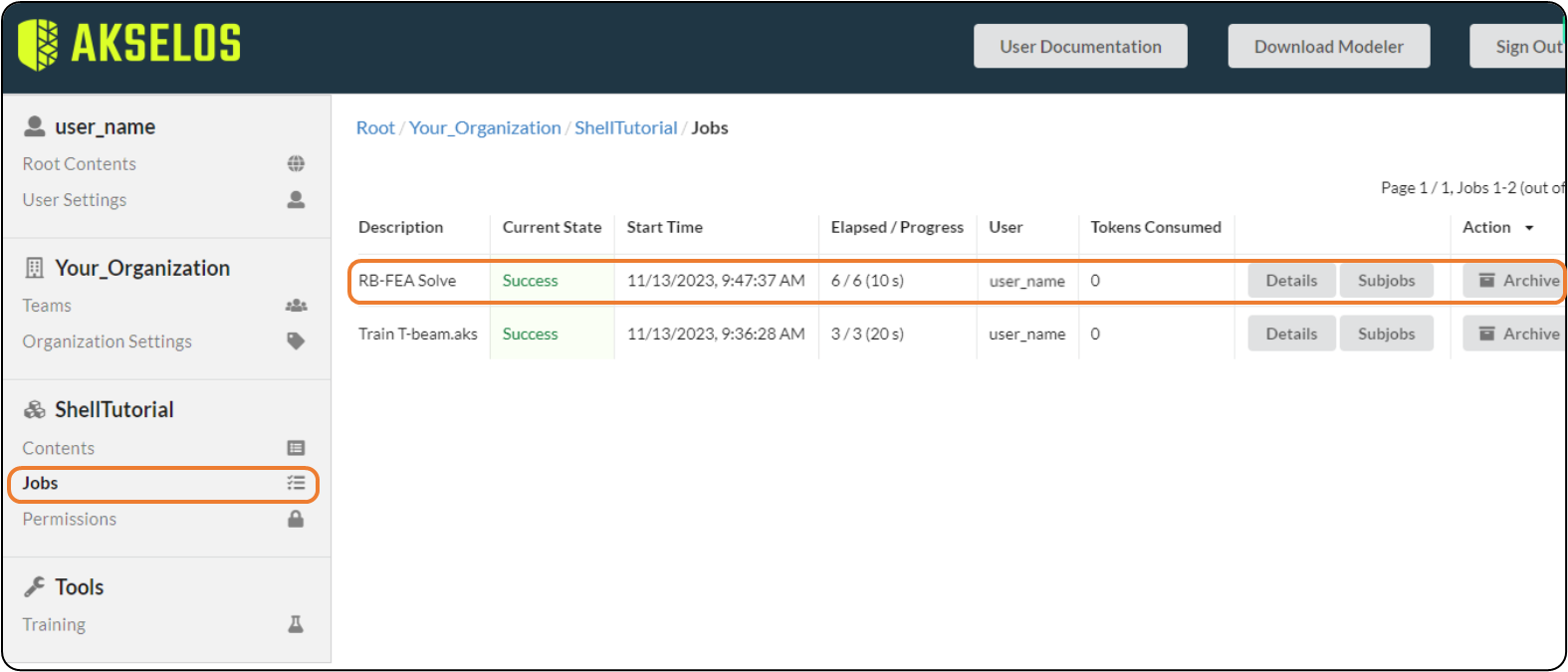

Figure 4.37. Tracking the solving job

5. Results Verification

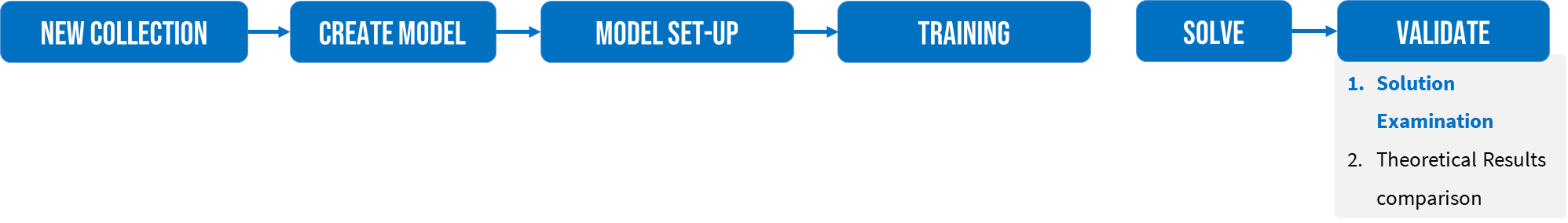

Figure 5.1. Validate - Solution Examination

The solution will be performed after downloading. The maximum deflection of the T-cross-section cantilever beam from the RB-FEA solution is 2.079 (mm).

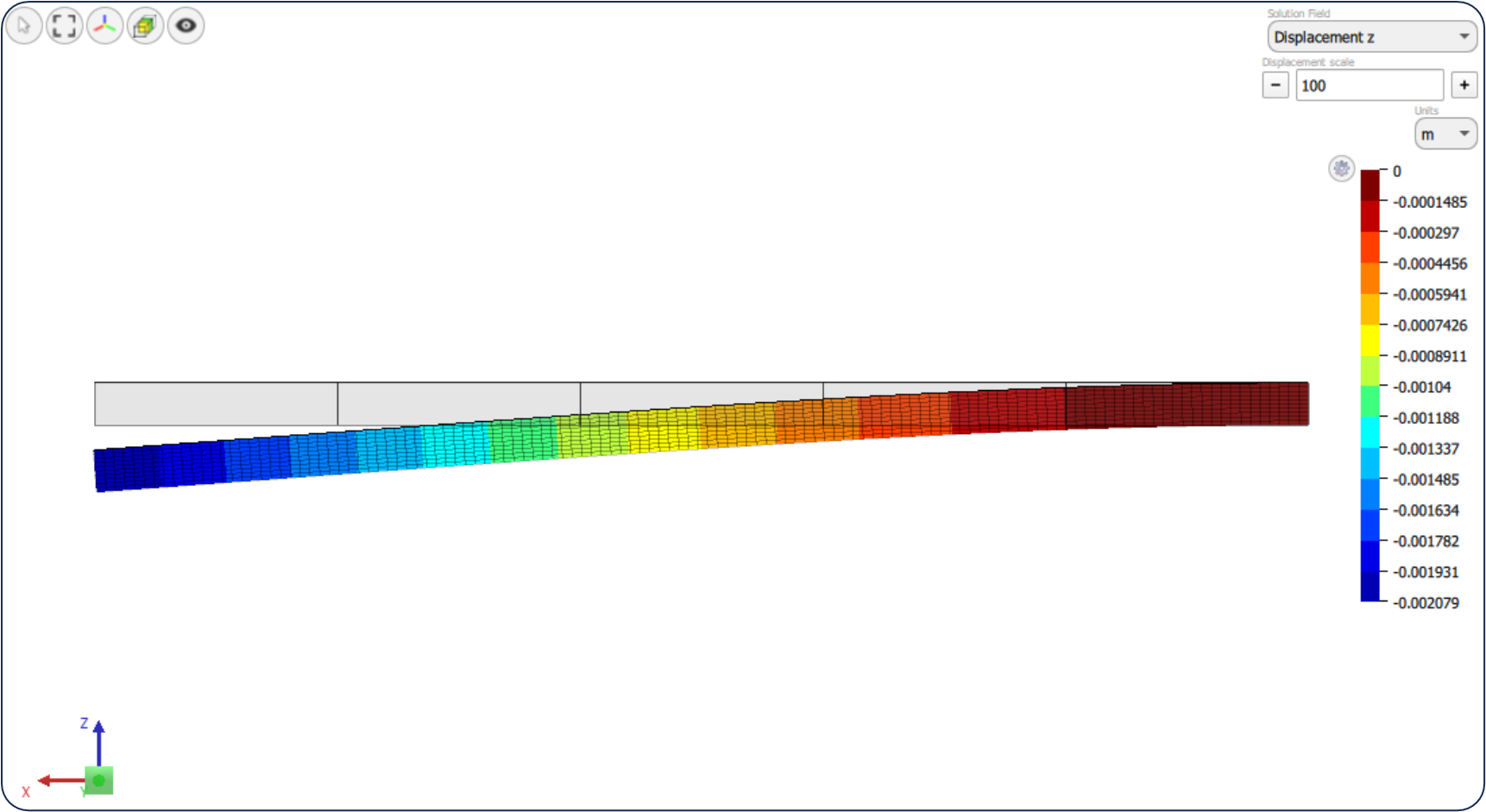

Figure 5.2. T-beam solution - Displacement z

Theoretical Results Comparison:

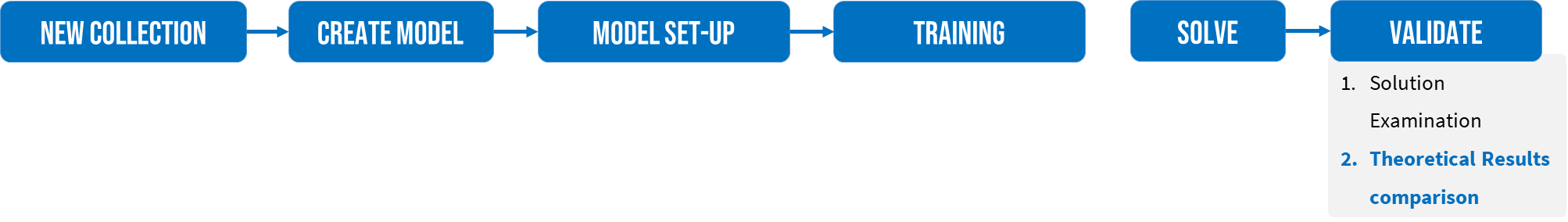

Figure 5.3. Validate - Theoretical Results Comparison

To validate the result obtained from the Akselos RB-FEA solver, we will compare the maximum deflection with an analytical solution. According to the theory, the maximum deflection of the beam is given by the following formula:

A black and white image of a mathematical equation

Description automatically generated

Where:

E is Young’s modulus. In this tutorial, E = 200 GPa.

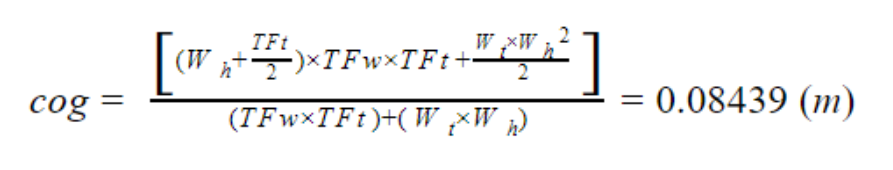

I is the moment of inertia which depends on the cross-section of the beam. In this case, the cross-section is a T-section with a length is 0.75 (m) and a thickness is 0.1 (m).

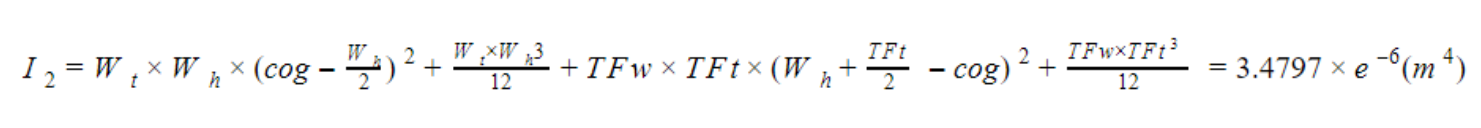

The moment of inertia is computed using the following equation:
