Graph Tool

Modified on Mon, 4 Mar at 2:26 PM

What is in this article?

1. Introduction

In the process of studying the model’s results, showing a result table, and plotting a result chart are useful for users to analyze the problem. Akselos Modeler provides a tool – Graph Tool – to serve these purposes.

This article will provide users with more information about Graph Tool and guide you on how to use it.

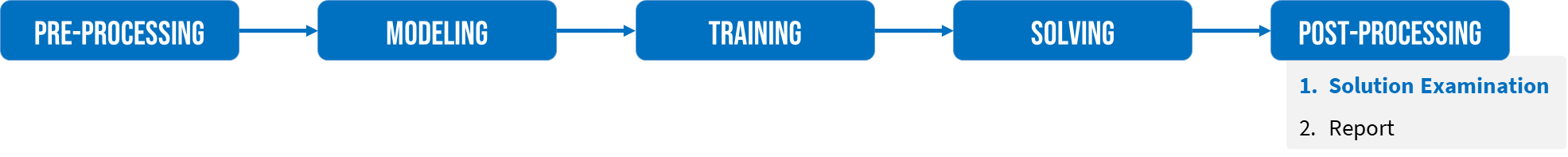

The Graph Tool is supported for the Post-Processing stage.

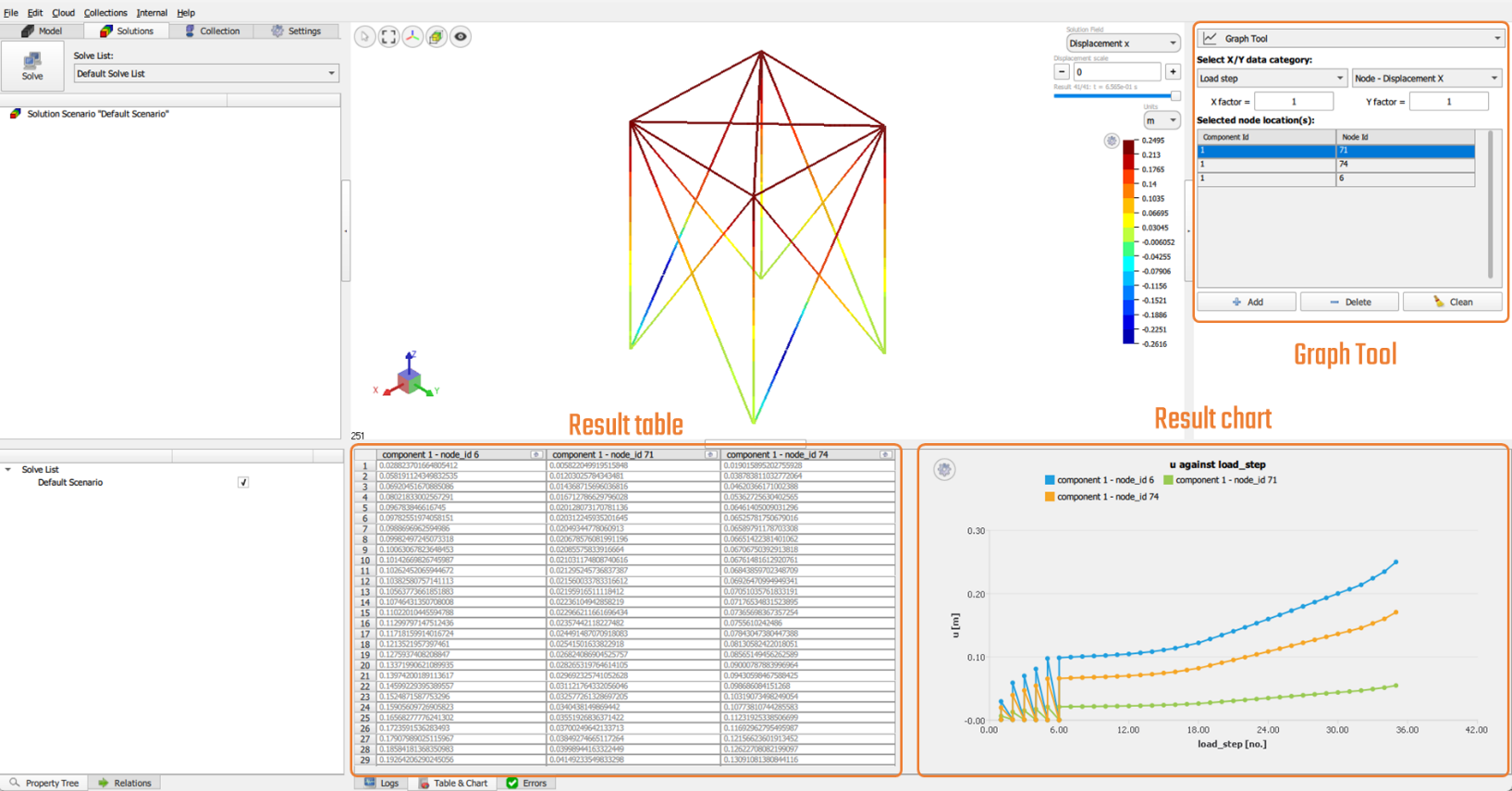

Figure 1: Navigation – Graph Tool

Terminologies

Subdomain	A group of mesh elements having the same properties (materials or other common properties) inside a component
Components	Components created by the componentization process to use with Akselos Integra
Sideset	A surface of mesh assigned with a certain ID number

2. Graph Tool

Why do we need to use the Graph Tool?

Graph Tool is a tool that helps users to show the results of selected nodes as a table and graph on the Table & Chart screen.

Tables and graphs are powerful ways for communicating information, especially when it comes to presenting the results of research or analysis. They offer several key benefits over simply presenting data in normal format.

Feature	Tables	Graphs
Clarity and Conciseness	Organized data, easy to compare values	Vusual representation of trends and patterns
Comprehension and Retention	Structured format aligns with brain processing	Engages visual processing centers for better memory
Communication and Storytelling	Grasp key points quickly	Tell a compelling story with data

Ultimately, the best way to present results depends on the specific data. Tables and graphs are often used in combination to provide a comprehensive and informative picture of the findings.

What are the special points of the Graph Tool?

Akselos built the Graph Tool to support Pushover Analysis. Read more in Case Study: … to know how to simulate the Pushover Problem in Akselos Modeler.
The tool only supports 1D beam structure.
The Table & Chart screen is the place that supports the tool to show the results.

3. Tool Option

This section will show you more information about the options of Graph Tool.

A screenshot of a graph tool

Description automatically generated

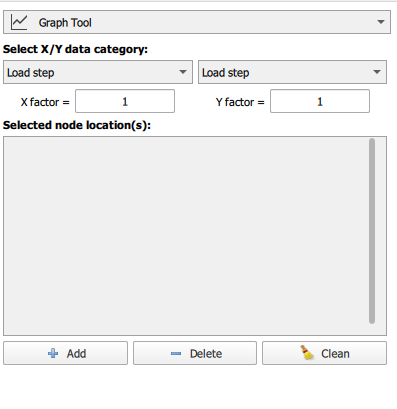

Figure 2: The first glance of Graph Tool interface

3.1. X/Y data

This position is the place where users select data for the x and y axis of the graph.

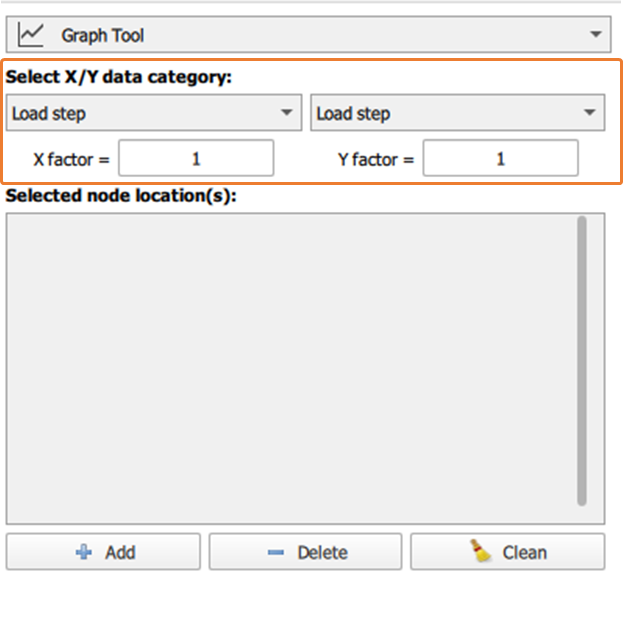

Figure 3: The position of selecting X/Y-axis data

There are two main options:

Data list: The left is data for x axis and the right is data for y axis. The data fields in the expanded list depend on the result fields of the solution.

A screenshot of a graph tool

Description automatically generated

Figure 4: The data fields on the expanded list

X/Y factor: The option helps users scale up or down data on the axis. The default is 1.

3.2. Selected node location(s)

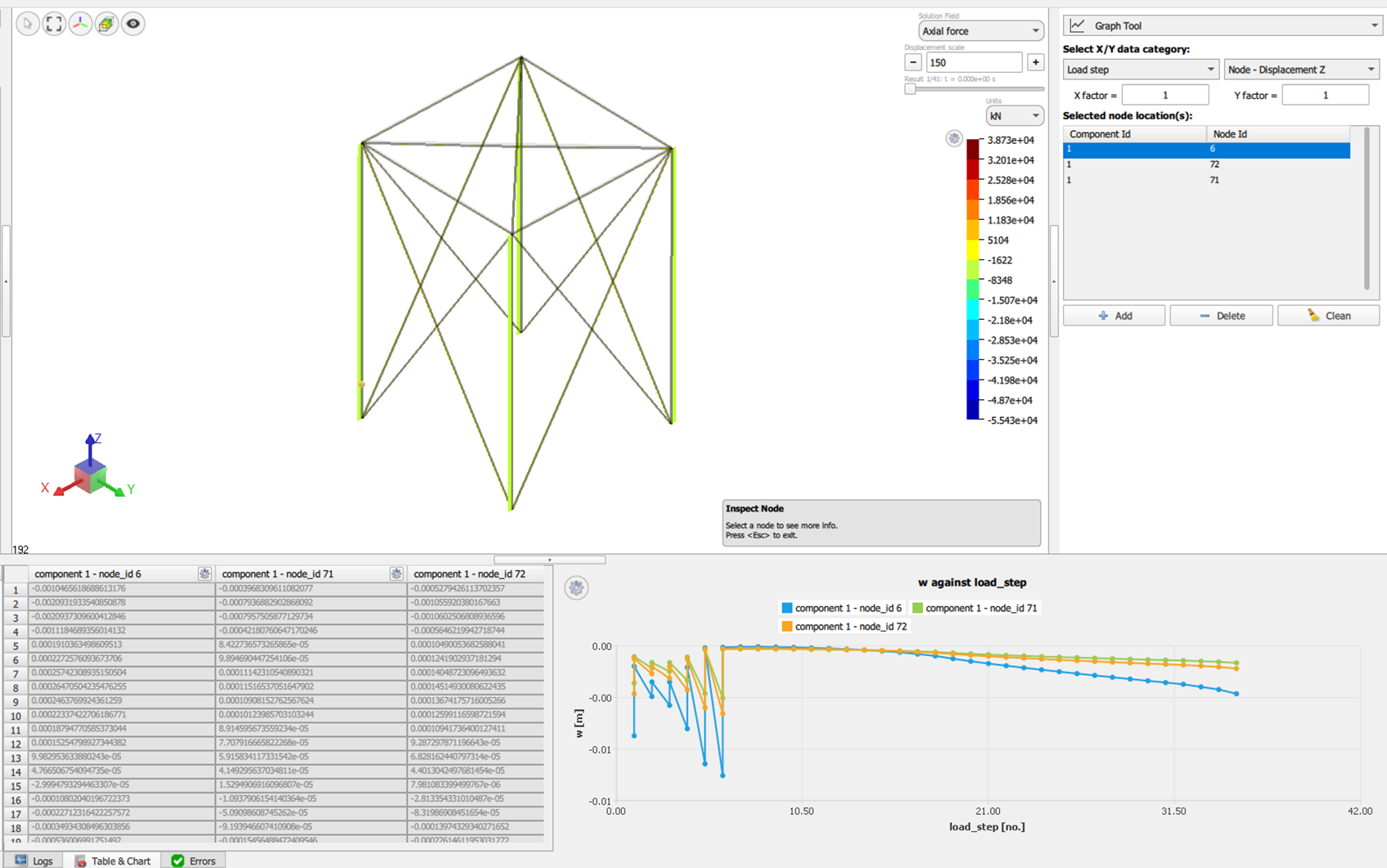

This position is the place to show node(s) that users select on the Graphic Window. The tool will get the results of these nodes and show them as a table and graph.

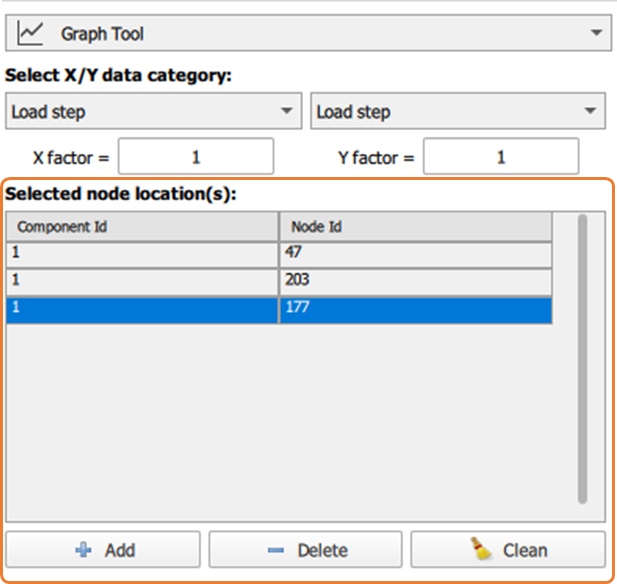

Figure 5: The position of the selected nodes’ panel

There are three functions in this place:

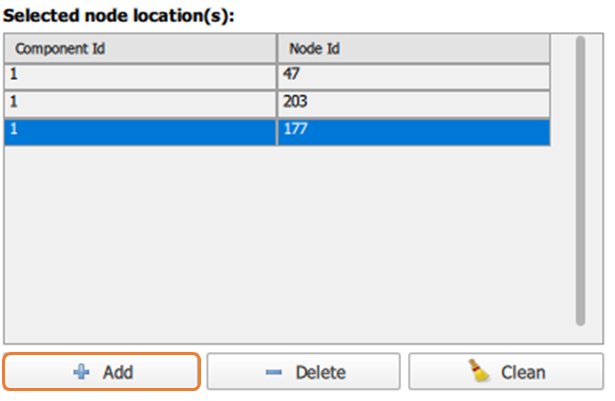

Add node(s): To analyze the results at any node, users need to add that node from the Graphic Window to the panel via Add function. Users can add multiple nodes to the pannel and cannot add the same node twice.

Figure 6: Add button

Delete selected node(s): To remove any selected node from the panel, users need to select this node on the panel and use Delete function. To delete multiple nodes, users need to do it one by one.

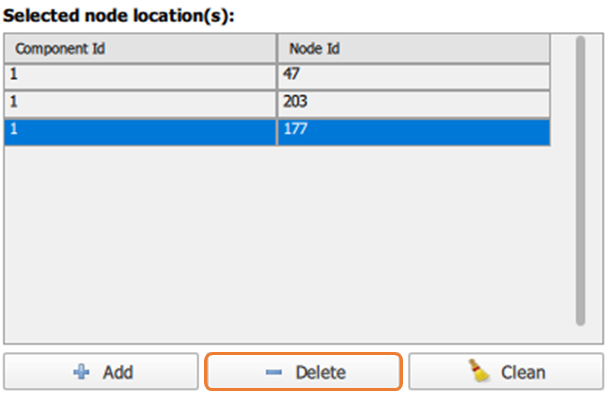

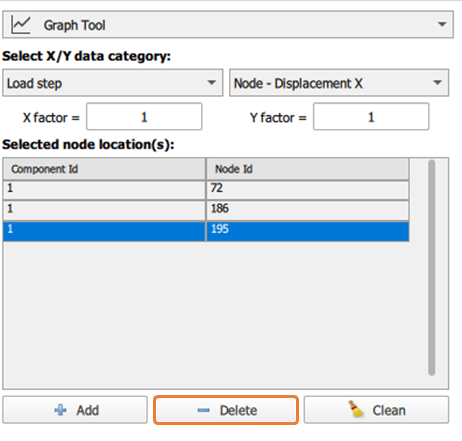

Figure 7: Delete button

Delete all selected nodes: Clean function helps users delete all selected nodes.

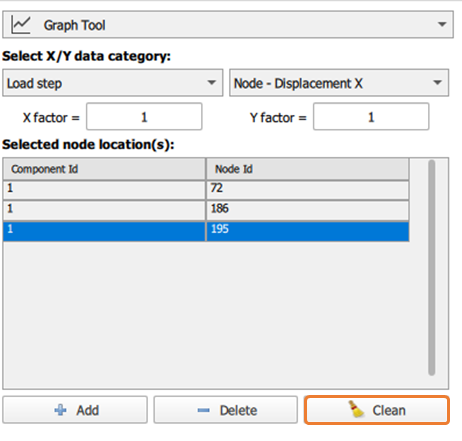

Figure 8: Clean button

3.3. Chart Settings

There are some advanced options for customizing the graph and functions to export data.

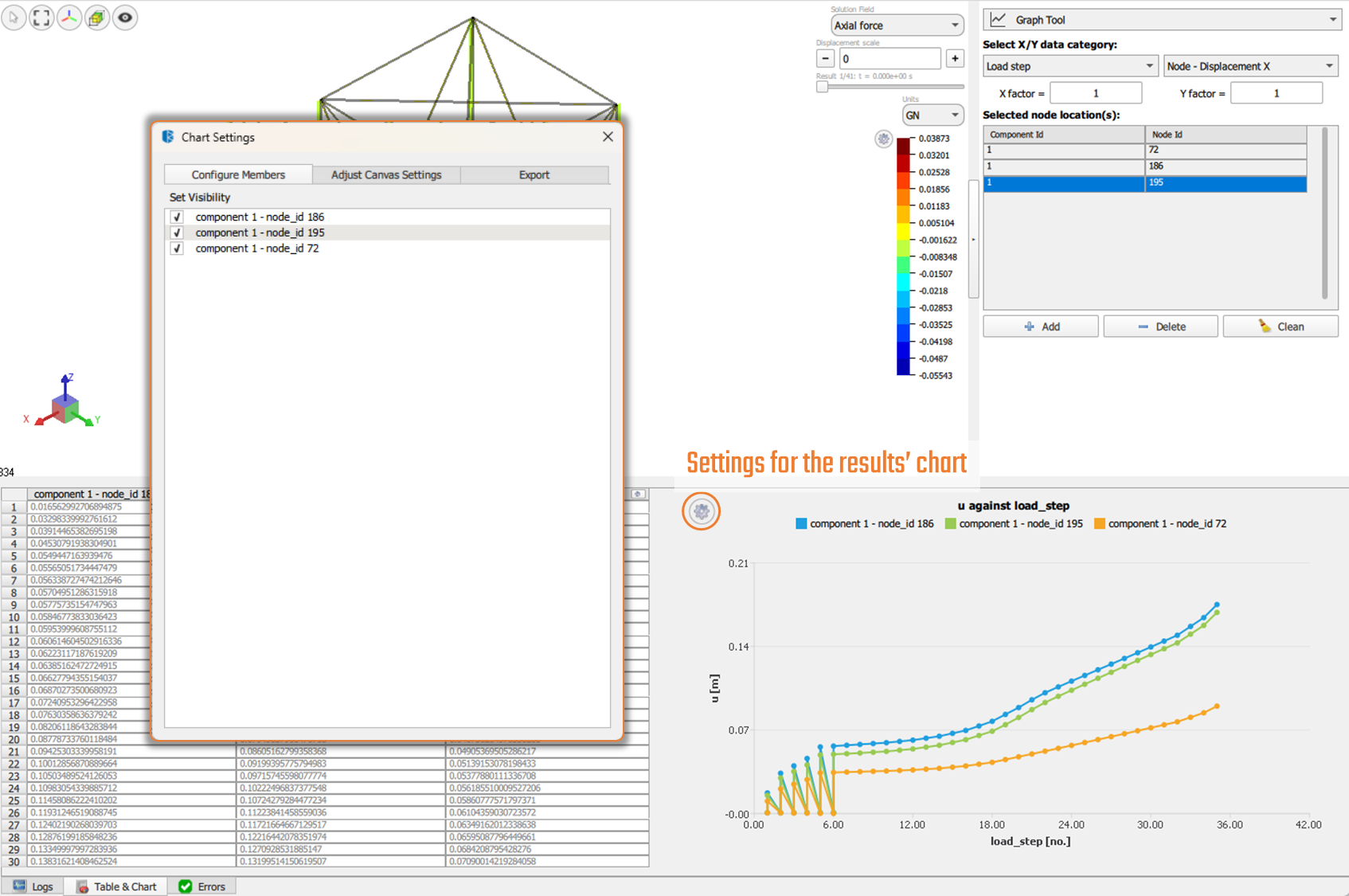

Figure 9: Navigation – Chart Settings

In Chart Settings, there are two tabs to customize the chart and one tab to export the data:

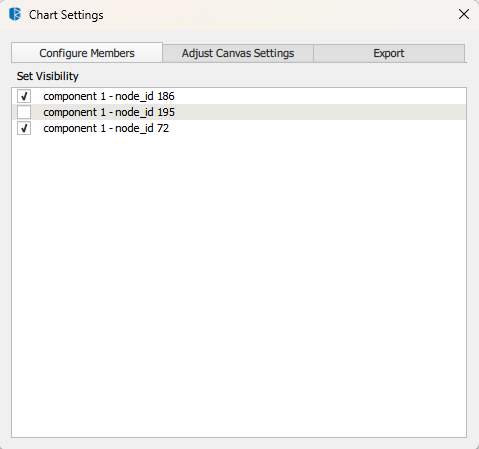

Configurate Members: The tab contains all selected nodes. If users want to hide any node’s results from the chart, just untick on its box.

A screenshot of a chart settings

Description automatically generated

Figure 10: Chart Settings – Configure Members tab

Adjust Canvas Settings: The tab contains options to customize the axis of the chart.

A screenshot of a chart settings

Description automatically generated

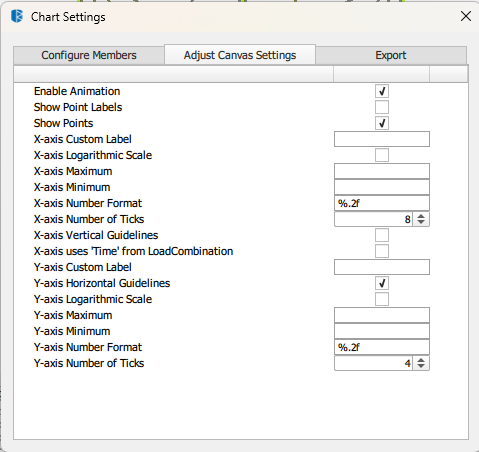

Figure 11: Chart Settings – Adjust Canvas Settings tab

Enable Animation: Any changes to the chart will be animated.
Show Point Lables: The values of the points will be shown on the graph.
Show Points: The points will be marked with small circles.
X/Y-axis Custom Label: The name of the axis.
X/Y-axis Logarithmic Scale: The axis will be changed to the axis in the logarithmic chart.
X/Y-axis Maximum: Setting for maximum value of the axis.
X/Y-axis Minimun: Setting for minimum value of the axis.
X/Y-axis Number Format: Setting for format of number in the axis.
X/Y-axis Number of Ticks: Setting for the amount of the numbers in the axis.
X-axis Vertical Guidelines: Setting for the extension lines to correspond to the numbers on X-axis.
Y-axis Horizontal Guidelines: Setting for the extension lines to correspond to the numbers on Y-axis.

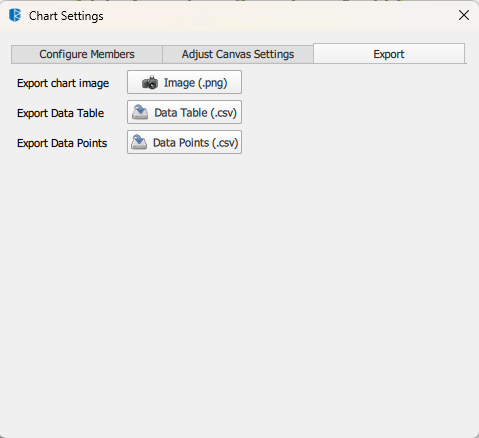

Export: the tab contains functions to export the data.

A screenshot of a chart settings

Description automatically generated

Figure 12: Chart Settings – Export tab

Export chart image: Option to save the chart as the image.
Export Data Table: Option to save data on the table.
Export Data Points: Option to save data on the chart.

4. How to use Graph Tool?

This section will guide you on how to use Graph Tool in detail.

The solution of Pushover analysis is the input data for this tool. Users can read Pushover Analysis with 1D Beam Element to get the pushover solution.

Follow the steps below:

STEP 1: Change to Graph Tool on the right panel and change from Logs screen to Table & Chart screen.

STEP 2: Select data in X/Y data category.

STEP 3: Enter X/Y factor to salce up/down data. Users can leave the default of 1.

Figure 13: Selecting data for X/Y-axis

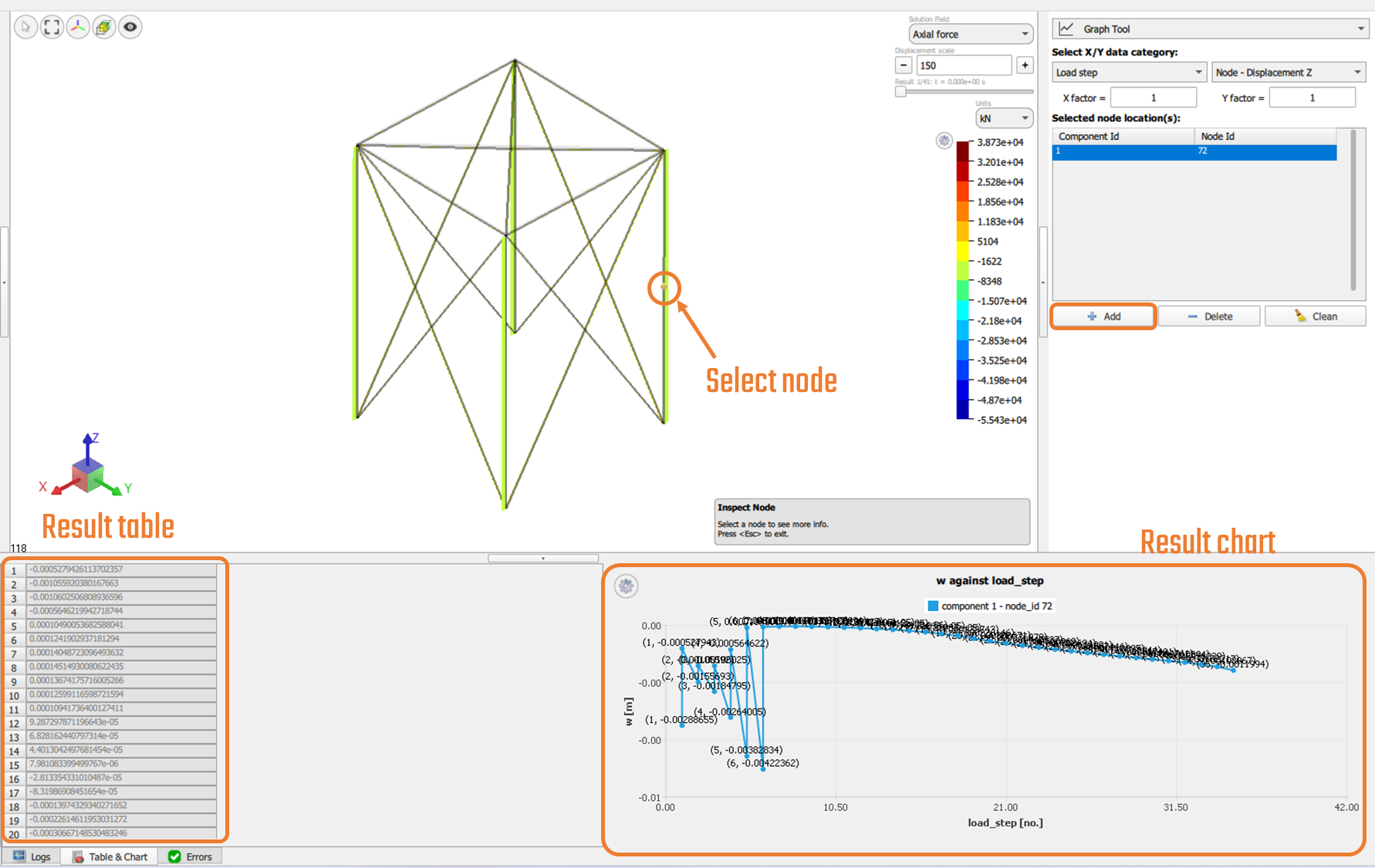

STEP 4: Click on the Add button à Select the node on the Graphic Window. The results of this node will be shown as a table and chart on the Table & Chart screen.
