What is in this Article?

1. Creating Collection

2. Monitoring Tasks on Akselos Dashboard

3. Import collection

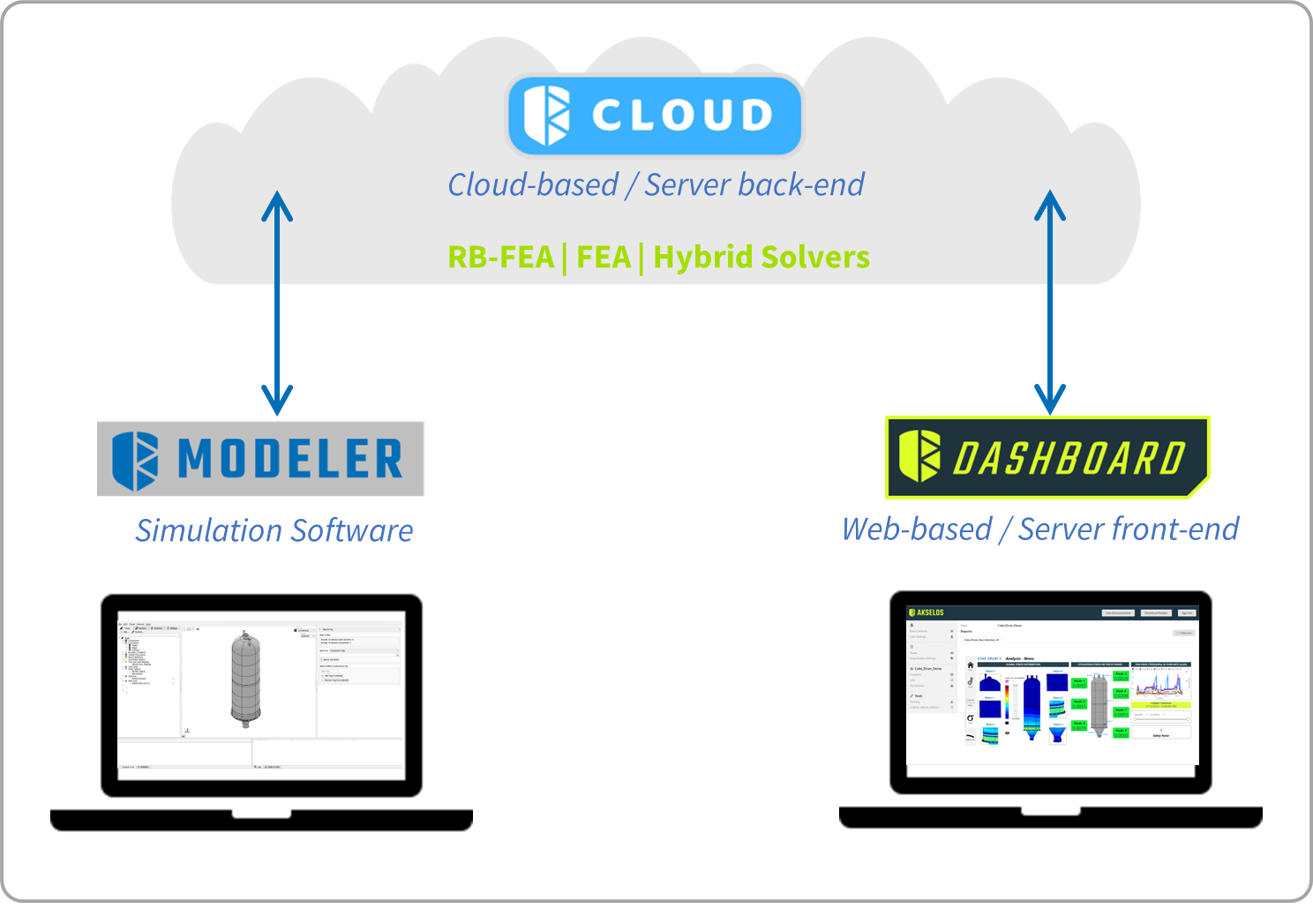

Figure 1. Akselos Dashboard, Akselos Modeler and Akselos Cloud connection

Collection: Contain the all related Digital Twin model data, stored on Cloud, where user can manage through the Akselos Customer Dashboard, or can be imported to local Computer to create, modify or add new items. It interacts with Akselos Modeler to analyze and visualize the structural responses of Digital Twin models.

1. Creating Collection

Creating a new collection - the very first step in fabricate your asset - is create a storage for your data on Akselos Customer Portal

Please note that users can only create new collections with the Write or Admin access permission.

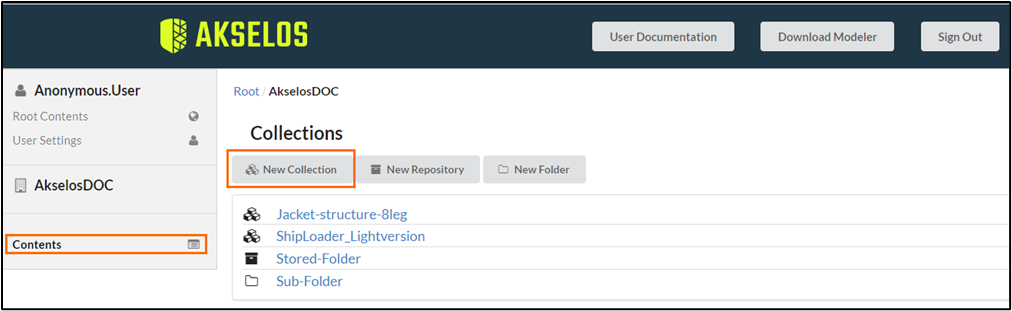

Locate an organization and click the Contents tab, then click the New Collection button to create a new collection.

Figure 2. Creating a new collection

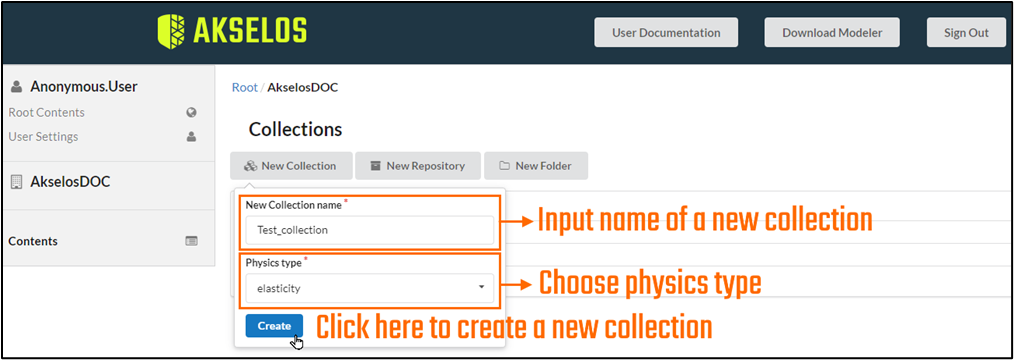

Name and physics selection are required for the new collection.

Figure 3. Required information for a new collection

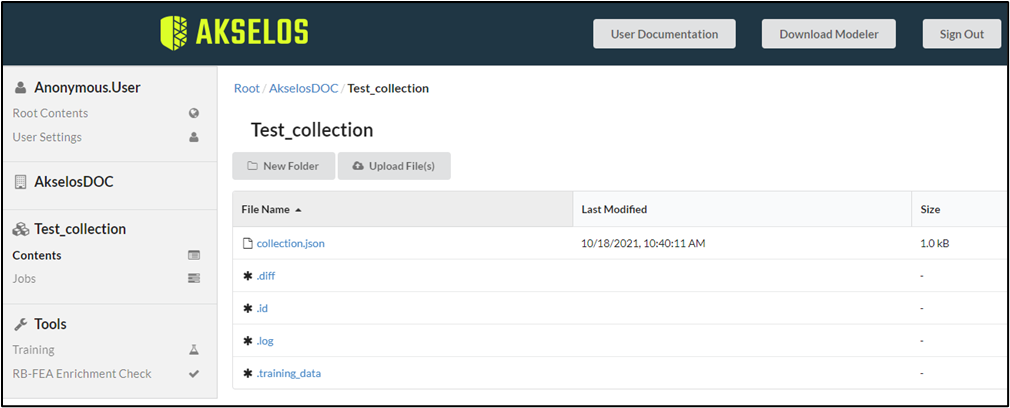

Figure 4. Items inside the new collection

Akselos currently supports the following physic types of collections:

• Acoustics: used for acoustic harmonic analyses. This collection type can be used with solid elements only.

• Elasticity: used for elasticity eigen physics and Helmholtz (Harmonic) analysis. This collection type can be used with 1D beam, shell, solid elements, or a combination of these elements.

• Heat: used for steady and transient heat transfer analyses. This collection type can be used with solid elements only.

2. Monitoring Tasks on Akselos Dashboard

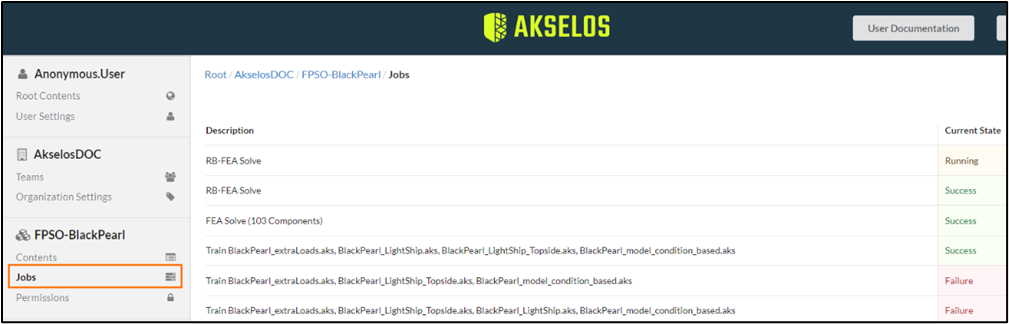

In the Jobs sub-tab, users can track the status of training/solving/post-processing jobs that any accounts have performed in the collection. Information about the jobs such as:

Information about the jobs included:

• Current state
• Start time
• Time elapsed
• Tokens Consumed
• Details of Job

Figure 5. Monitoring jobs being executed in the collection

If there is any job that does not run as expected, users can quickly cancel it by clicking on the Stop button.

Figure 6. Canceling an unexpected job

The number of jobs can significantly increase with time, that will cause confusion to users to manage a large amount of success or failure jobs. By clicking on the Archive button, users can get rid of unwanted jobs to make room for new jobs. Moreover, users are able to extract the archived jobs if needed.

Figure 7. Archiving an unwanted job

There are two types of jobs which contain only the Details button or have both the Details and Subjobs buttons.

Figure 8. Details and Subjobs buttons

The Subjobs button only appears when a job needs to execute several sub-jobs in order to complete it. Users can click on the Subjobs button to track what happens to every single subjob. By clicking on the Details button, users will be able to get general information about a job.

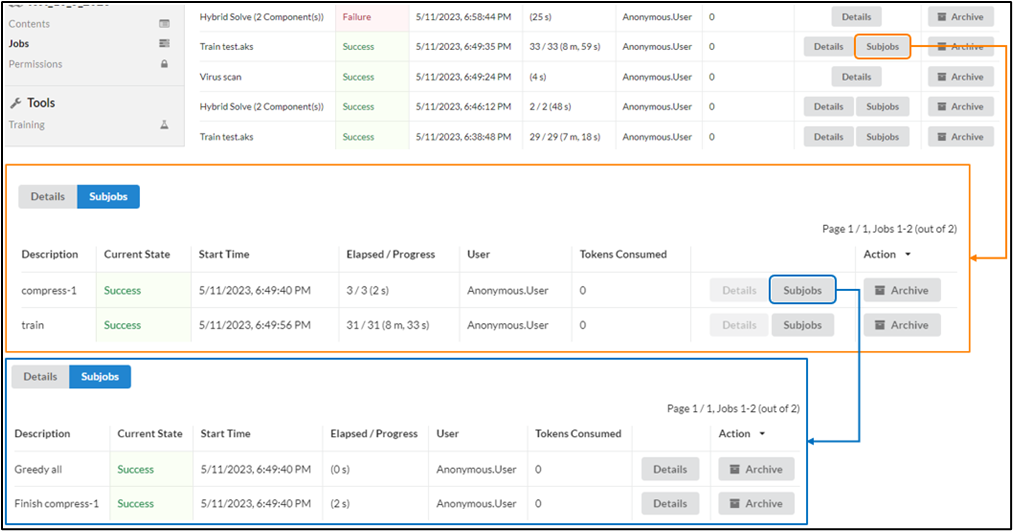

Figure 9. Information when clicking the Subjobs button

Figure 10. Information when clicking the Details button

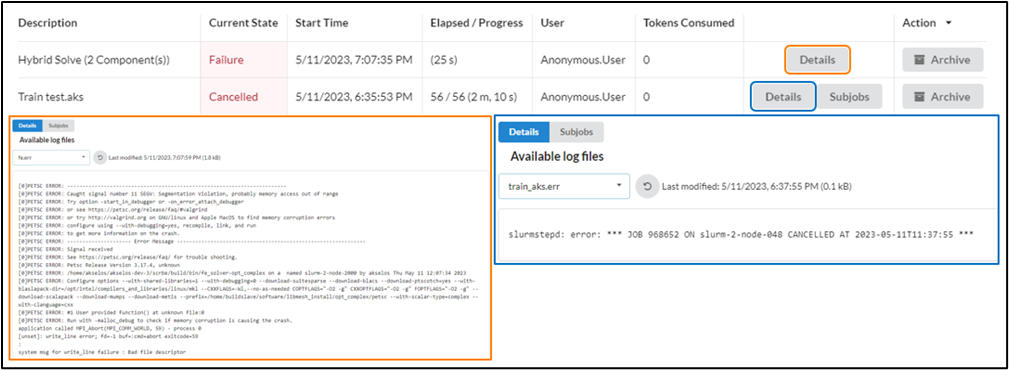

In addition, in the case that users get a failure job, by seeking the *.err and *.out files in Details button, users will get a detailed description of the problem. If users don't know how to deal with the problem that causes failure, please contact Akselos Support channel ([email protected]) to be supported.

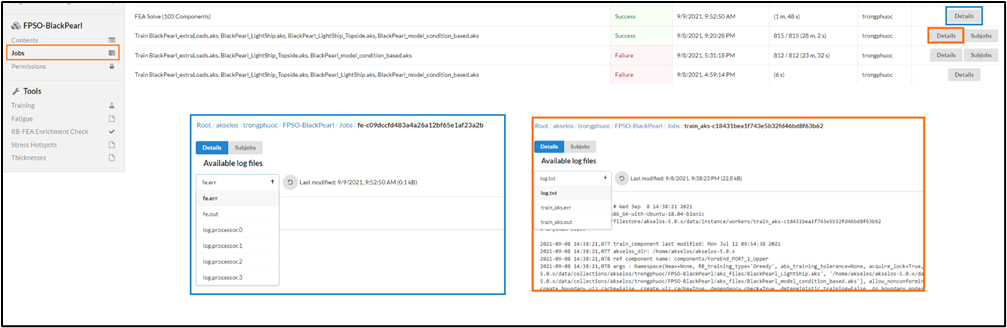

Figure 11. Detecting the problem of a failure job

3. Import collection

Collection in the Dashboard must be imported to the local machine for solving and customizing model.

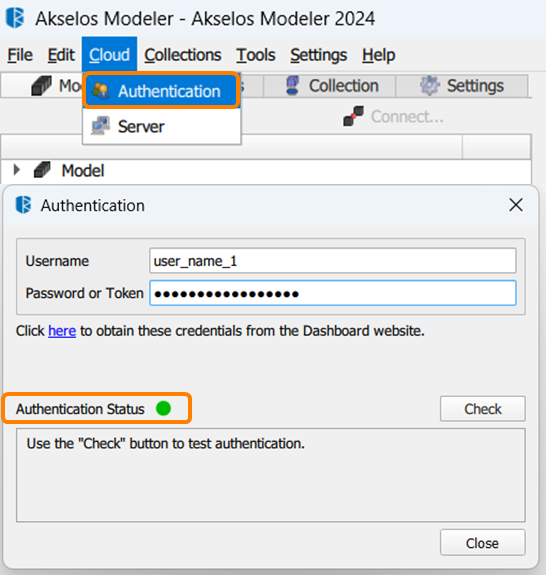

First, you need to make sure that your Akselos Modeler has connected to the server by checking Authentication. In Cloud tab, select Authentication → Enter username & Password and click Check.

Figure 12. Checking Authentication Status

When the dot in Authentication Status turns green, it proves that your Akselos Modeler has successfully connected to the server.

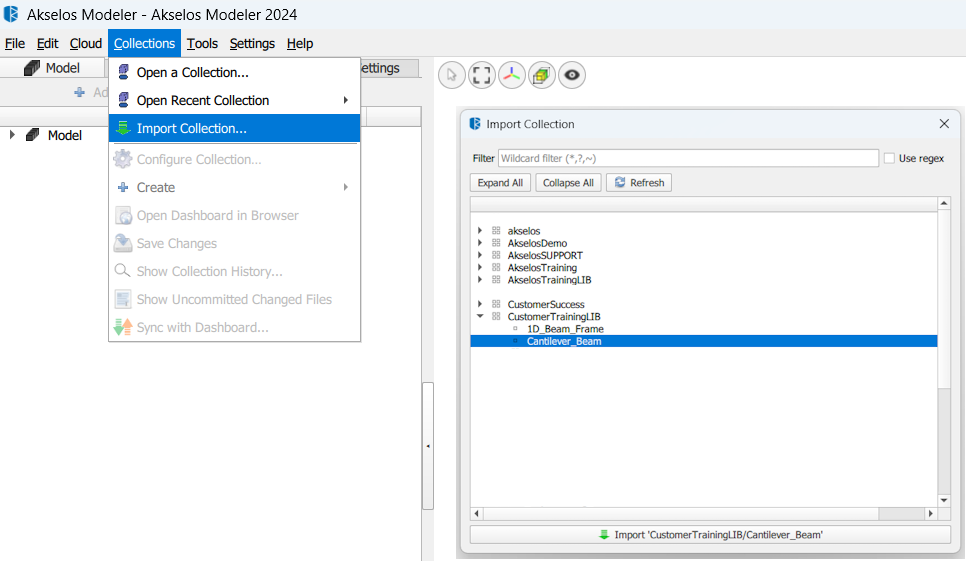

To import collection, click Collection tab -> click Import Collection .... A pop-up will appear, select your collection that you want to import to your local machine.

Figure 13. Importing collection in Akselos Modeler

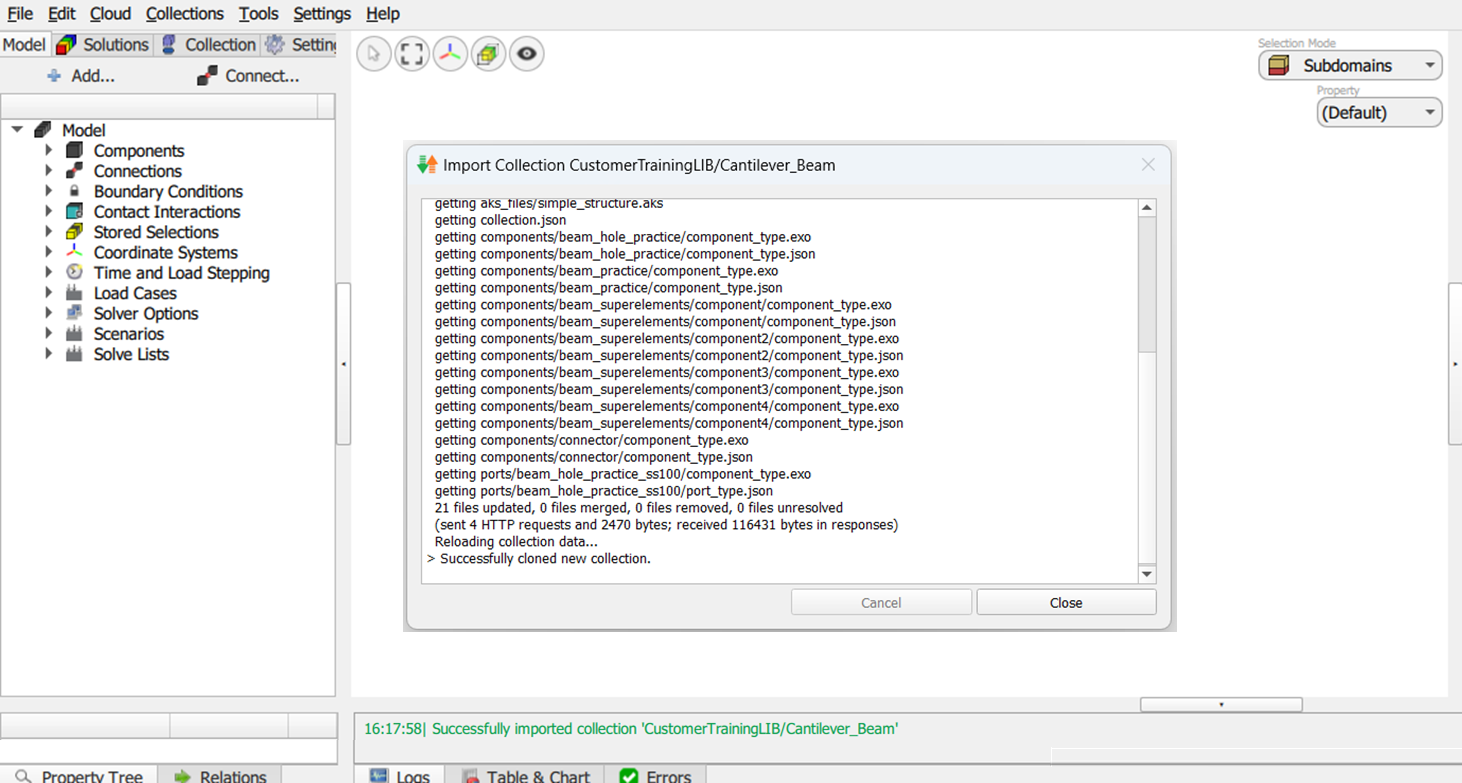

A Pop-up appears showing the collection import process. When the import process is successful, a message will appear Logs tab to notify you that you have successfully imported your collection.

Figure 14. Successfully importing a collection
