What is in this Article?

“Read” Access Permission

“Write” Access Permission

“Admin” Access Permission

Three Types of Access Permissions

New users need to request permission from an administrator to grant access to an organization, which contains some folders, repositories, and collections.

Moreover, administrators of an organization can easily manage different access levels of an individual or a team (group of users) to the materials of the organization. There are 3 types of access that the administrator can set for other accounts: Read, Write, and Admin.

Read: users can only read data in the collection with this permission. With the Read permission, an account can import the collection to their local machine and connect to Akselos Cloud to solve any models in this collection but cannot commit any change related to the collection datasets.

Write: users can read and commit changes for the collection but cannot set permission for anyone else to access the collection. If an account has the Write permission in an organization, it can also create new collections inside the organization.

Admin: users have full rights with the collection including Read, Write, and set permissions for other accounts to access the collection. If an account has the Admin permission in an organization, it can also create new collections or delete existing collections inside the organization.

Each type of access has a different layout and functionalities, which will be described specifically below.

Table 1. Capabilities of each access type

“Read” Access Permission

With Read access, users are allowed to import existing collections on Akselos Dashboard to their local machine via Akselos Modeler. Users then can analyze and visualize the structural responses of the Digital Twin models in Akselos Modeler.

Each item of the collection data can be downloaded separately to the local machine. Any changes of each item are also recorded, users can click on the icon to view the log history.

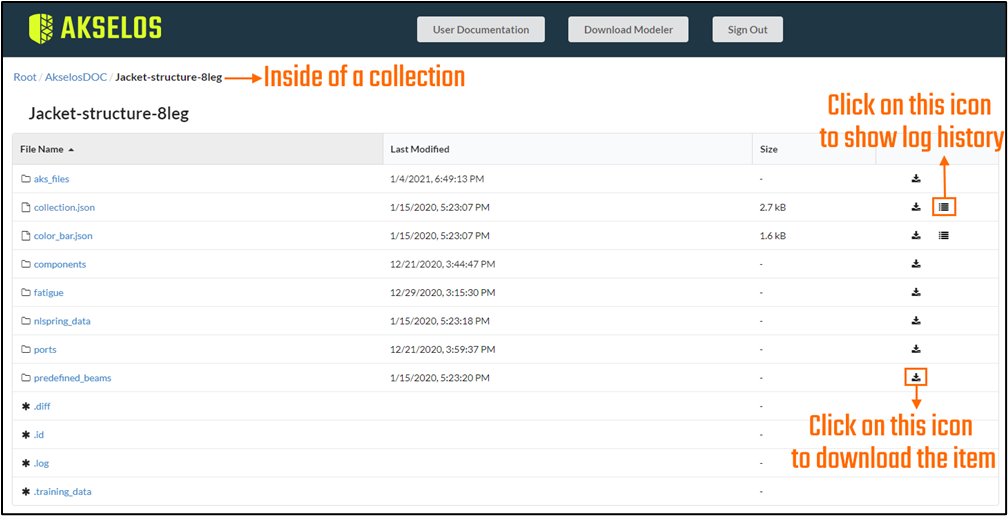

Figure 1. Each item of collection data can be downloaded and change-tracked

“Write” Access Permission

With the Write access, there are 3 buttons available: New Collection, New Repository, and New Folder. Users can freely create new collections, repositories, and folders by using these buttons.

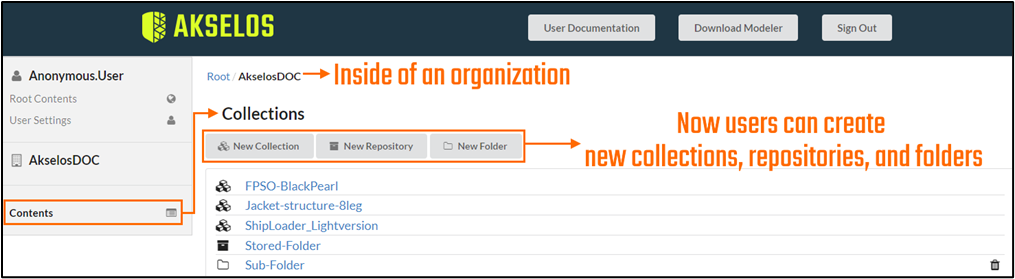

Figure 2. Three new buttons appear with the Write access

Additionally, users can delete an empty folder. But if users try to delete a non-empty folder, an error message will appear.

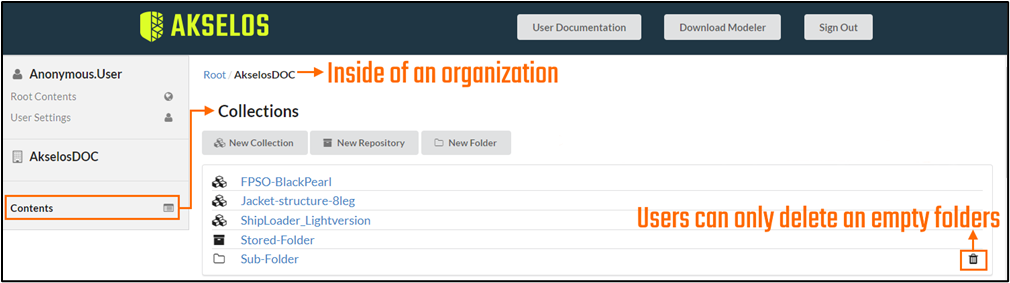

Figure 3.3. Deleting an empty folder by clicking on the “trash bin” icon

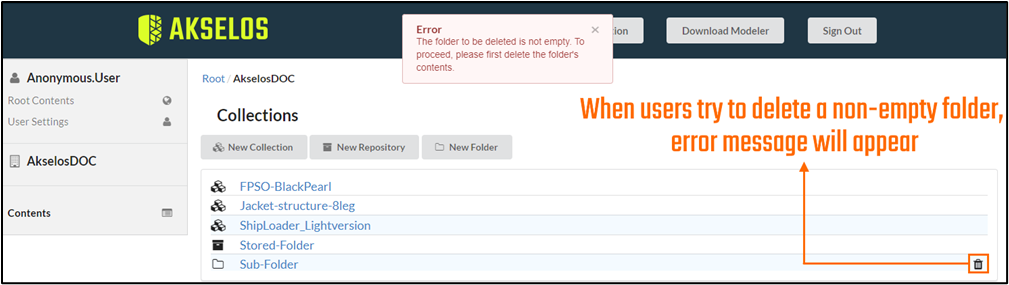

Figure 4. Error message when deleting a non-empty folder

With the Write access, users can create new folders and upload files to the collection.

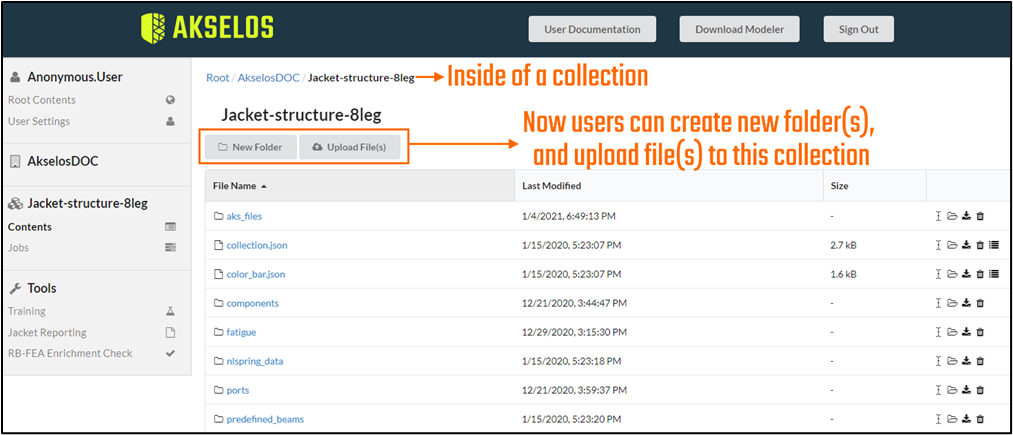

Figure 5. Two new buttons appear inside a collection

Each item of collection data can also be renamed, deleted, and moved to another folder.

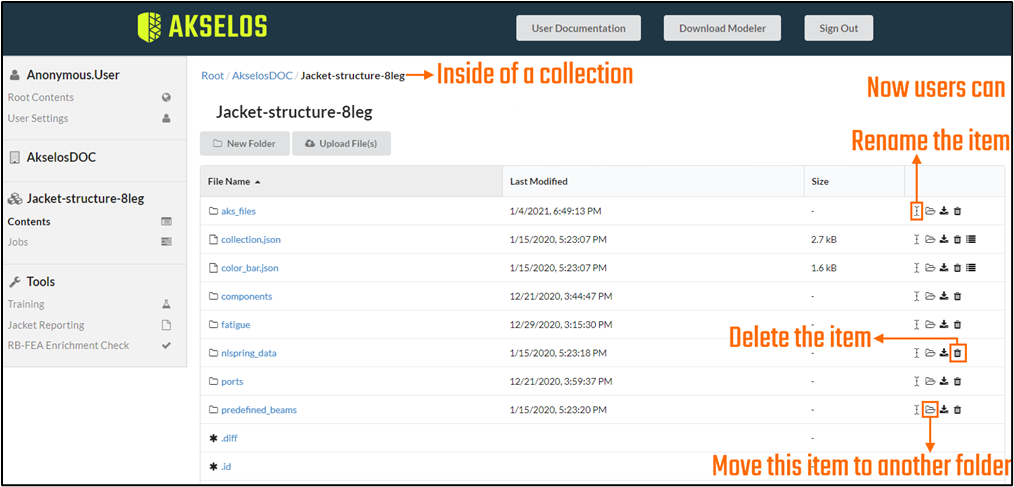

Figure 6. Rename, delete, and move functions are available for each item of collection data

Also, with this type of access, users can access the Training sub-tab to perform the Component Training process.

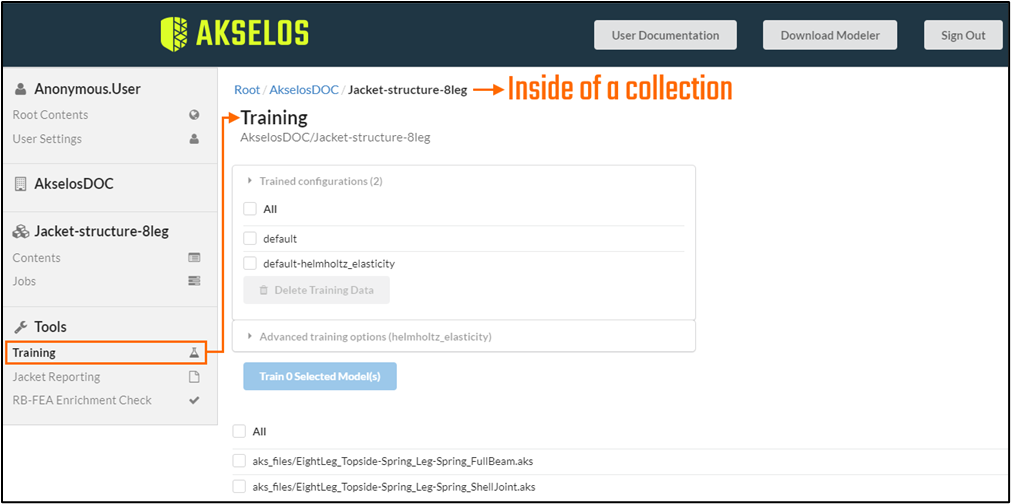

Figure 7. Component Training layout

With the Write access, users can create new folders and upload files to the repository. Each item of a repository can also be renamed, deleted, and moved to another folder.

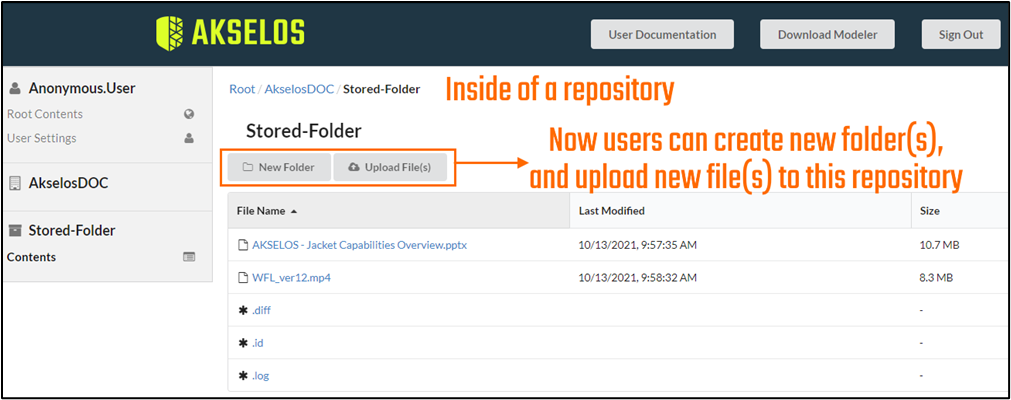

Figure 8. Two new buttons appear inside a repository

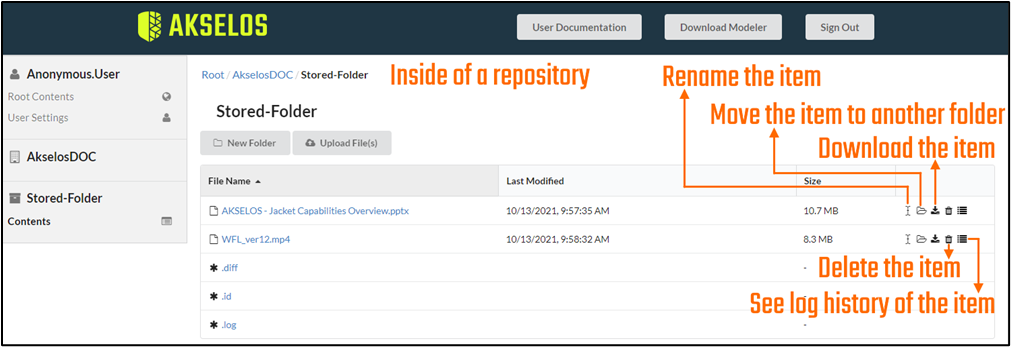

Figure 3.9. Rename, delete, and move functions are available for each item of a repository

With the Write access, users can create new collections, repositories, and folders. Users can also delete an empty folder.

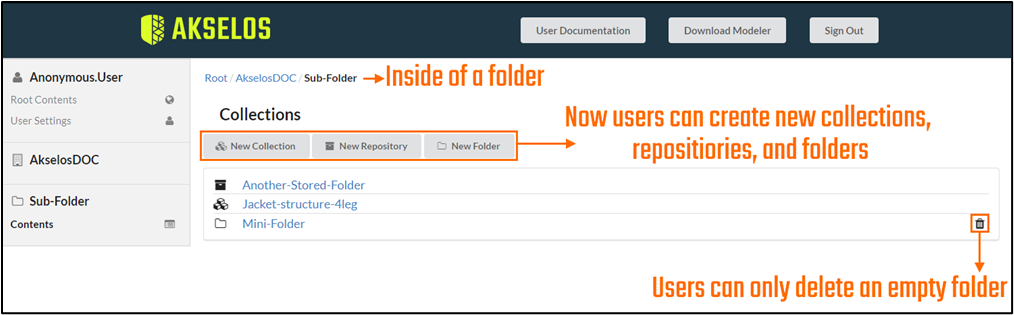

Figure 10. Three new buttons to create new spaces inside a folder

“Admin” Access Permission

The Admin access not only has the same abilities as the Read and Write accesses, but also can set permissions for other individual or team users. Besides, the accounts having this access type can freely create or delete any kind of data or materials of an organization.

As shown in the figure below, the “trash bin” icons now appear on every collection, repository, and folder, which means they can be deleted by the Admin users. Moreover, as the administrator(s), users can manage teams and settings inside an organization.

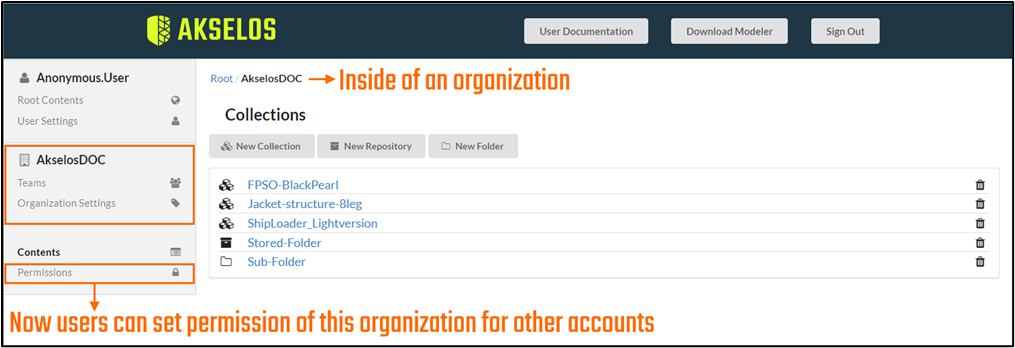

Figure 3.11. Data structure in Admin view (a)

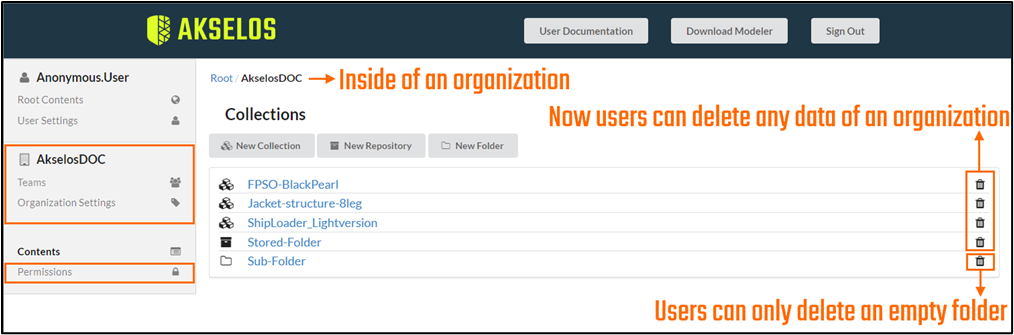

Figure 3.12. Data structure in Admin view (b)

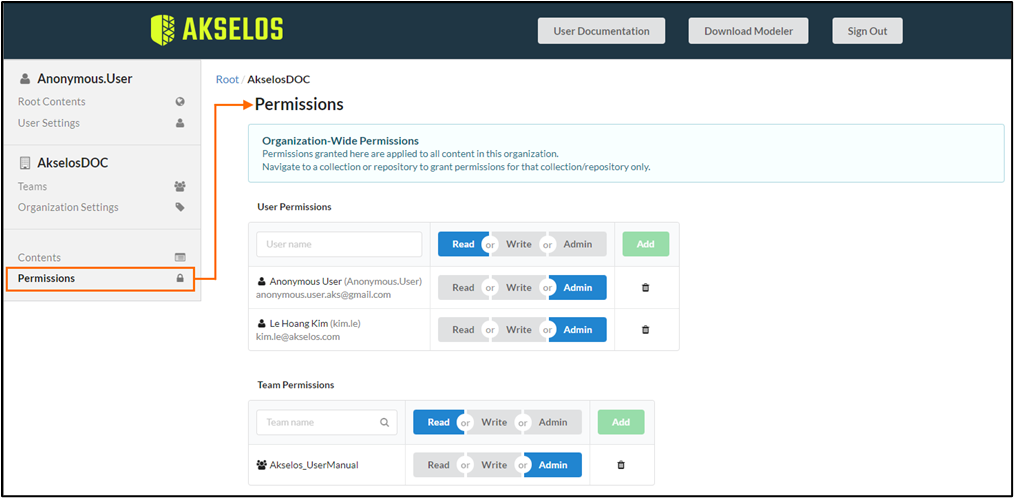

Figure 3.13. Permissions sub-tab

The Teams sub-tab shows which team (a group of user accounts) has permission to access the whole organization. In the Organization Settings sub-tab, the License Information and Access Logging Tracking System (reported weekly) of the organization are shown.

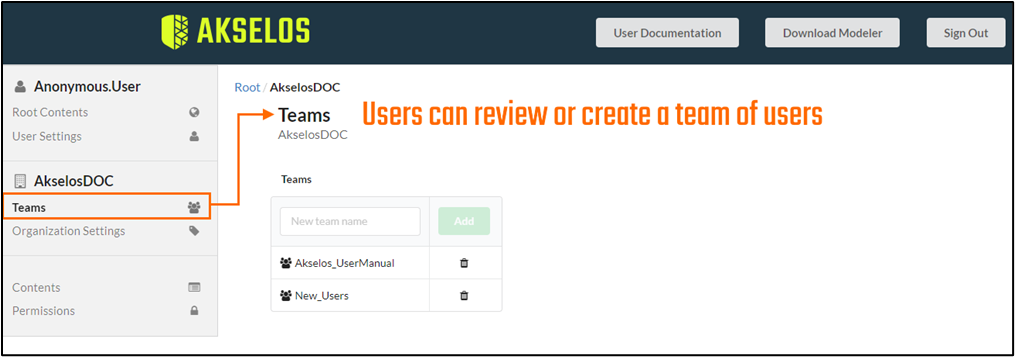

Figure 3.14. Teams sub-tab

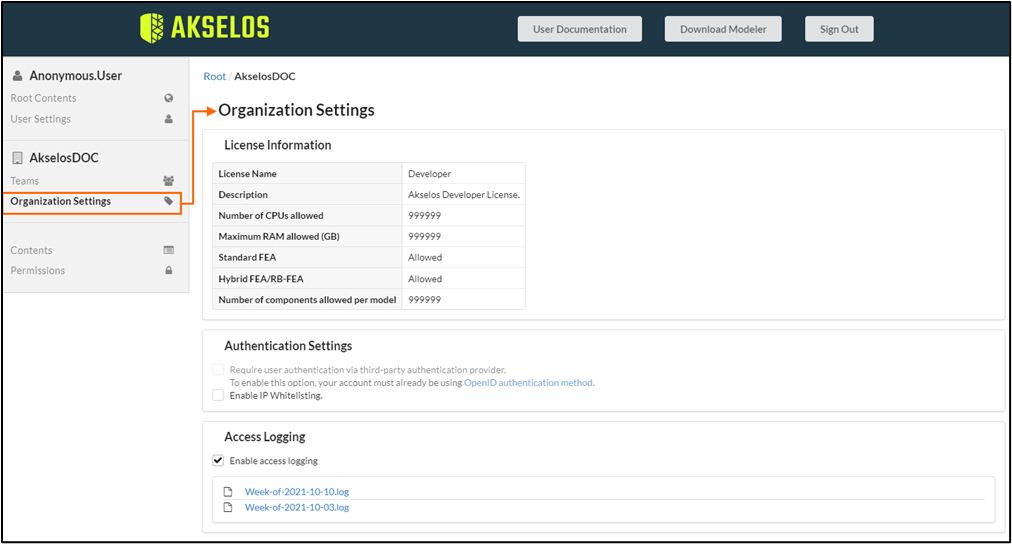

Figure 3.15. Organization Settings sub-tab

With Admin access, users can also rename and clone a collection of the current collection. Moreover, users can switch Clouds that they want to perform the Component Training process or solve a model.

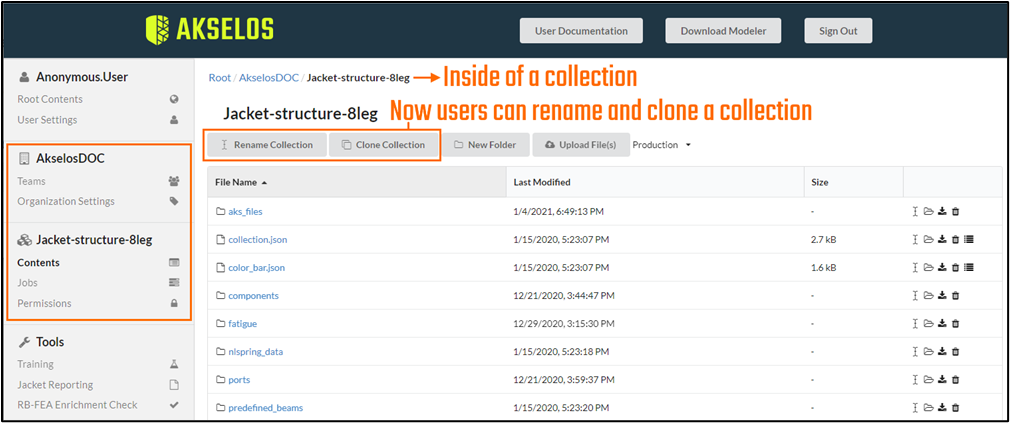

Figure 3.16. Users can rename and clone a collection with Admin access

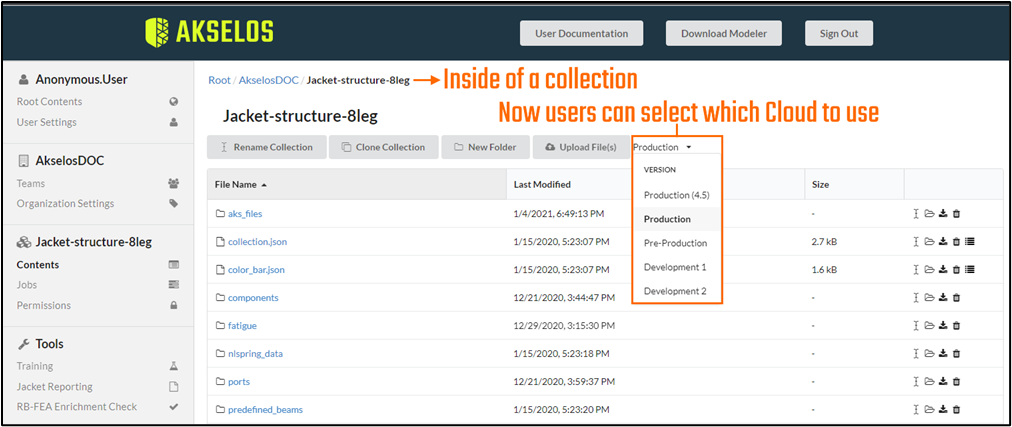

Figure 3.17. Switching Clouds

In a repository, administrators have full controls similar to an account with the Write access. Moreover, they can see and access the Teams, Organization Settings, and Permissions sub-tabs on the left Menu.

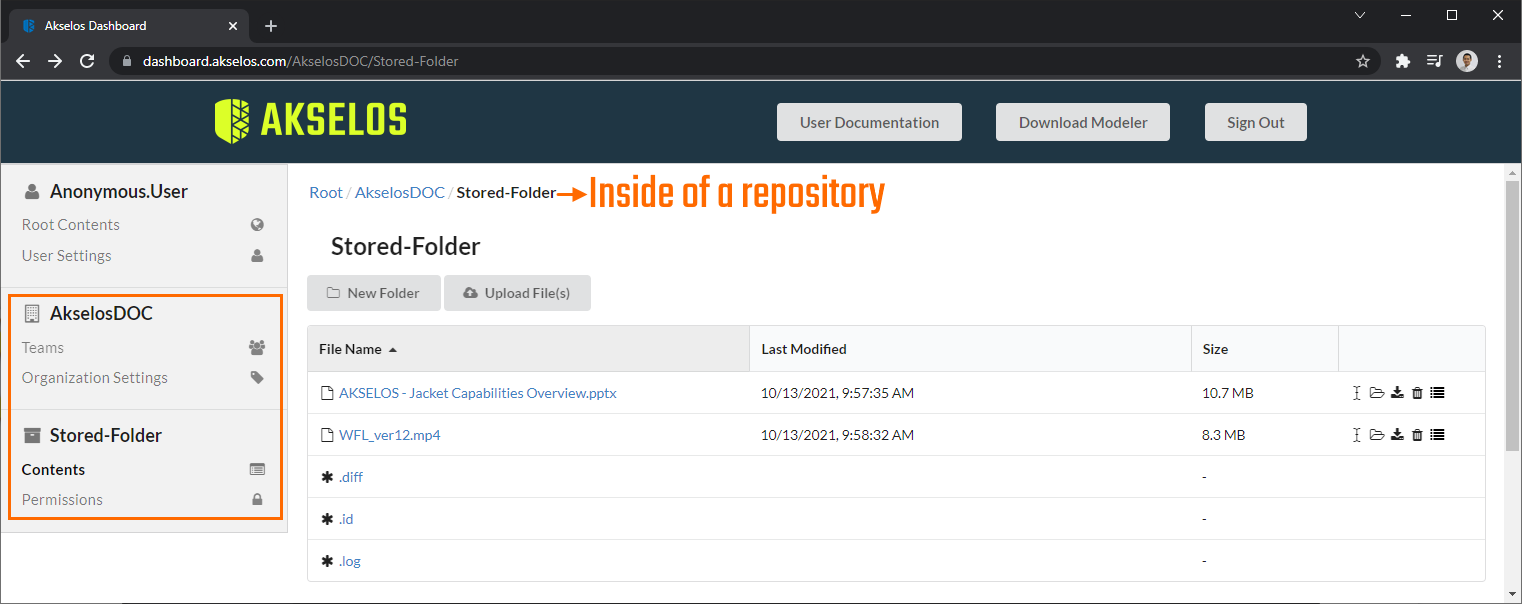

Figure 3.18. Inside a repository in Admin view

In a folder, an administrator can freely create or delete any collections, repositories, and sub-folders.

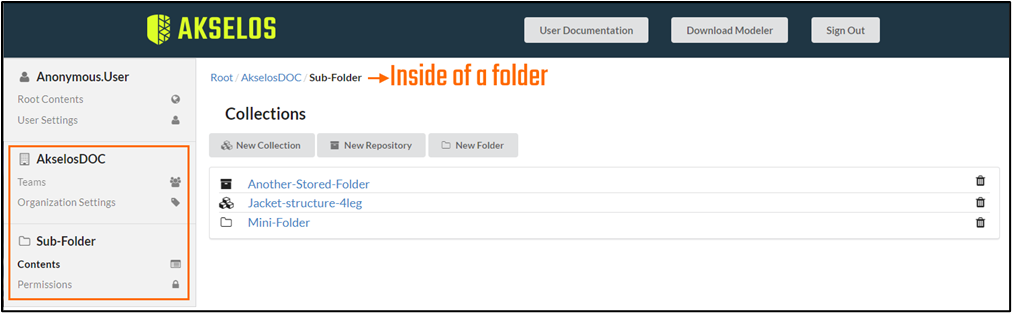

Figure 3.19. Inside a folder in Admin view
